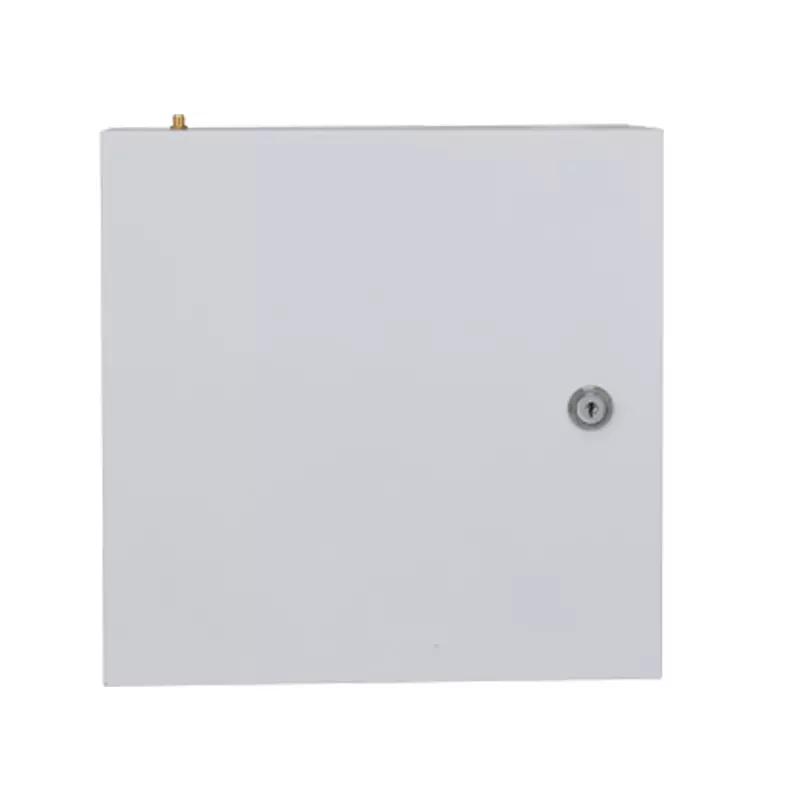

Alarm Controller
Input/Output |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
8 x channel local inputs (expandable to 72 channels) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
4 x channel local outputs (expandable to 84 channels) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
2 × RJ–45 10/100 self-adaptive Ethernet ports |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Telephone Line |
1-ch PSTN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Keyboard |
32 × LCD keypads |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Control |
32 × ARA24-W2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Battery |
1 × port (battery: 12 VDC/7 Ah) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicator Light |
3 × function indicators |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button |
1 × forced start button; 1 × default jumper; 1 × factory default jumper |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
2 (keypad, expansion module, and printer) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Buzzer |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper Alarm |
Controller tamper; housing tamper |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auxiliary Power Output |
1 × 12 VDC, 1 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
TCP/IP, DHCP, static IP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Update |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Arm and Disarm |
Keypad; keyfob; IC card; web; platform |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Log |
20,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Failure Protection for Configure Parameters |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Search Remote Alarm Event |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Management |
64 network users and 200 keypad users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Configuration |
Keypad; web |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Search |
Configurations; system logs; zone faults; system faults; program versions |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Language |
English, Russian, Latin American Spanish, and Arabic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
100–240 VAC, 50/60 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Idling: 5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Enironment |
–10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
275 mm × 74.8 mm × 275 mm (10.83" × 2.94" × 10.83") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
375 mm × 155 mm × 312 mm (14.76" × 6.10" × 12.28") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
2.1 kg (4.63 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
2.5 kg (5.51 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
FCC; CE |
