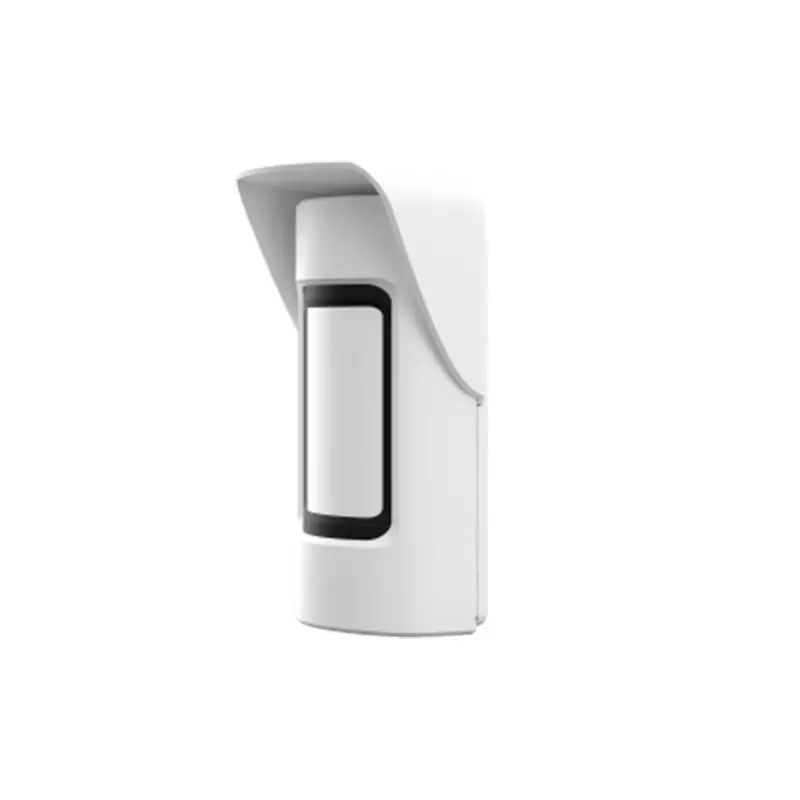

Wireless External Triple-Tech Detector

MOQ: 1 Pieces
Delivery time: 15 Day
> Support anti-masking detection. > Support moving detection to prevent someone move or detach device. > Support the installation of camera modules to form PIR-Cam to implement video verification. > Pet immunity: up to 80 cm, 40kg. > Support environment temperature monitoring.
> Supports two-way communication and frequency hopping to make communication with alarm hub stable and reliable. > Features cloud update. You can also remotely update the device on the mobile app. > Offers a dual backup system, and uses auto recovery when an update fails.
Product Details

Function

Indicator Light

1 × green alarm indicator

Button

1 × power switch;

1 × detection range adjustment switch

Remote Update

Cloud update

Low Battery Detection

Yes

Tamper

Tamper alarm

Moving detection

Yes

Technical

Detection Mode

PIR + Microwave

Sensitivity

PIR: 3 levels adjustable

Detection Range

Angle:90°

Range:15 m (49.21 ft), the installation height is 1 m (3.28 ft)

Detection Speed

0.3 m/s–2 m/s

Microwave Frequency

24 G

Pet Immunity Level

<80 cm (2.62 ft), about 40 kg (88.19 lb)

White Light Resistance Level

10,000 lux

Anti-masking

Yes

Two-way Digital Temperature Compensation

Yes

Scenario

Outdoor, indoor

Operating Current

20 uA

Alarm Current

Without Camera: 26mA (Avg); 250 mA (Max)

With Camera in Night: 380 mA (Avg); 1.5 A (Max)

Wireless

Carrier Frequency

433.1 MHz–434.6 MHz

Transmitter Power (EIRP)

Limit 10 mW

Communication Mechanism

Two-way

Communication Distance

RF: Up to 1,200 m (3,937.01 ft) in an open space

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

CR123A × 4

Battery Life

Without Camera: 5 years (triggers 10 alarms a day)

With Camera: 3.5 years (triggers alarms twice a week)

Operating Temperature

–25 °C to +60 °C (–13 °F to +140 °F)

Operating Humidity

10%–90% (RH)

Product Dimensions

211 mm × 106 mm × 94 mm (8.31" × 4.17" × 3.7")

Installation Height

0.8 to 1.3 m

Net Weight

651 g (1.44 lb)

Gross Weight

890 g (1.96 lb)

Installation

Wall mount, pole mount

Casing Material

PC + GF

Protection

IP66

Certifications

CE

Anti-corrosion Level

Basic Protection

Storage Temperature

–25 °C to +60 °C (–13 °F to +140 °F)

Packaging Dimensions

251 mm × 116 mm × 119 mm (9.88" × 4.57" × 4.69”)
