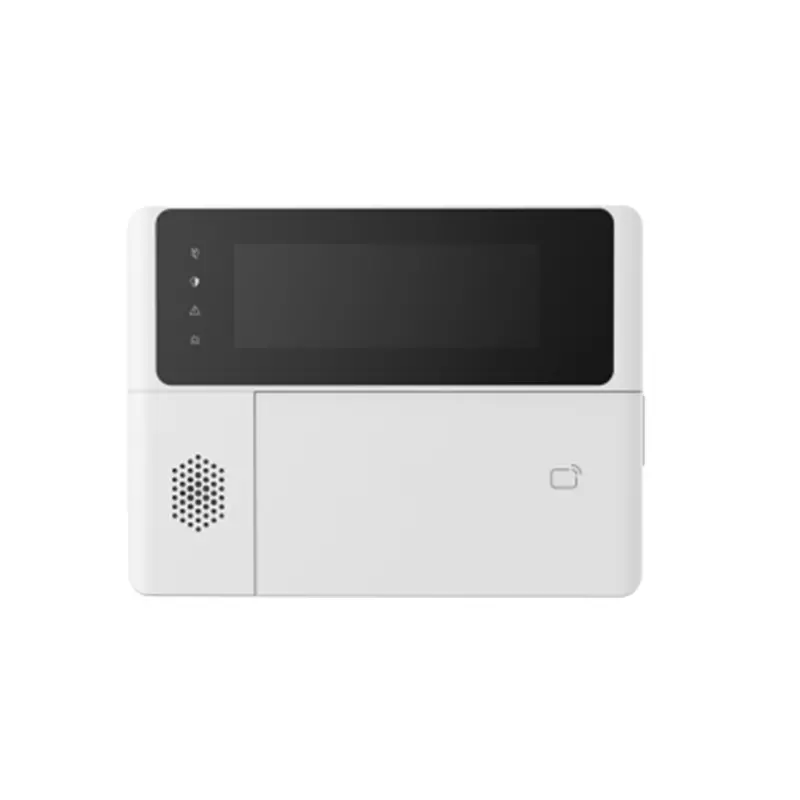

Wireless LCD Keypad
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicator Light |
4 indicators (External power supply, arming/disarming, fault, and alarm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button |
20 buttons (10 digital buttons and 10 function buttons) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Buzzer |
2 × built-in buzzer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Arm and Disarm |
Password; IC/desfire card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Update |
Cloud update |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Low Battery Detection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Measuring Range (Temperature) |
–10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scenario |
Indoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Current |
1.6 A (Max), 20 uA (Standby) (Battery 3 V); |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Carrier Frequency |
433.1 MHz–434.6 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transmitter Power (EIRP) |
Limit 10 mW |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Mechanism |
Two-way |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Distance |
1,200 m (3937.01 ft)(alarm transmission) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encryption Mode |
AES128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency Hopping |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Language |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC/4 × CR123A battery |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Model |
CR123A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standby Time |
3 years (the heartbeat cycle is set as 1 minute by default. It will last 3 years if it is operated 2 times per day, with each intervallasting 1 minute.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
4.8 W (Max), 0.20 mW (Standby) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
170.0 mm × 129.0 mm × 31.2 mm (6.69" × 5.08" × 1.23") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
390 g (0.86 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
665 g (1.47 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessory |
Included: 2 IC cards |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anti-corrosion Level |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
214.0 mm × 162.0 mm × 57.0 mm (8.43" × 6.38" × 2.24") |
