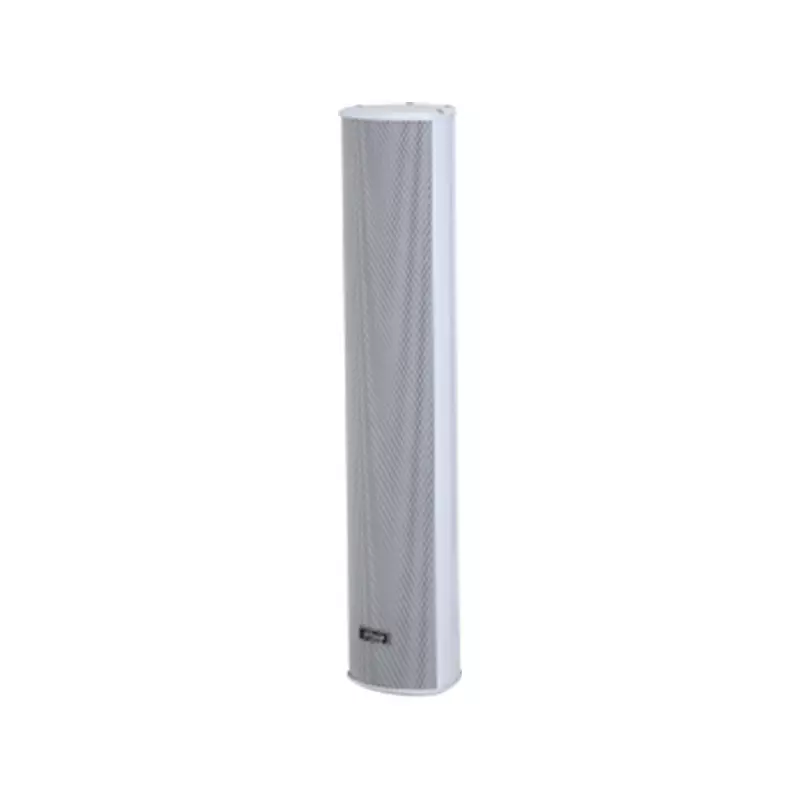

IP Column Speaker
Speaker |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Sound Pressure Level |
108 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SNR |
≥75 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency Response |
100 Hz–18 kHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Coverage Pattern |
H: 70°; V: 100° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speaker Output |
30 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TF Card Interface |
Supports TF card storage |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
24V Auxiliary Input |
24 VDC, POE power supply |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 × RJ-45 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP, HTTP, SIP, ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Protocol |
MP3, G.711a/u |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
512 MB and TF card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Input |
PoE+ (IEEE 802.3at), 24 VDC, 2 A (Standby) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
36 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
60%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Level |
IP65 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE EMC, CE LVD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
93 mm × 83 mm × 443 mm (3.66" × 3.27" × 17.44") (L× W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
148 mm × 125 mm × 530 mm (5.83" × 4.92" × 20.87") (L× W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
2.0 kg (4.41 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
2.7 kg (5.95 lb) |
