System

Main Processor

Embedded Processor

SDK

Yes

Basic

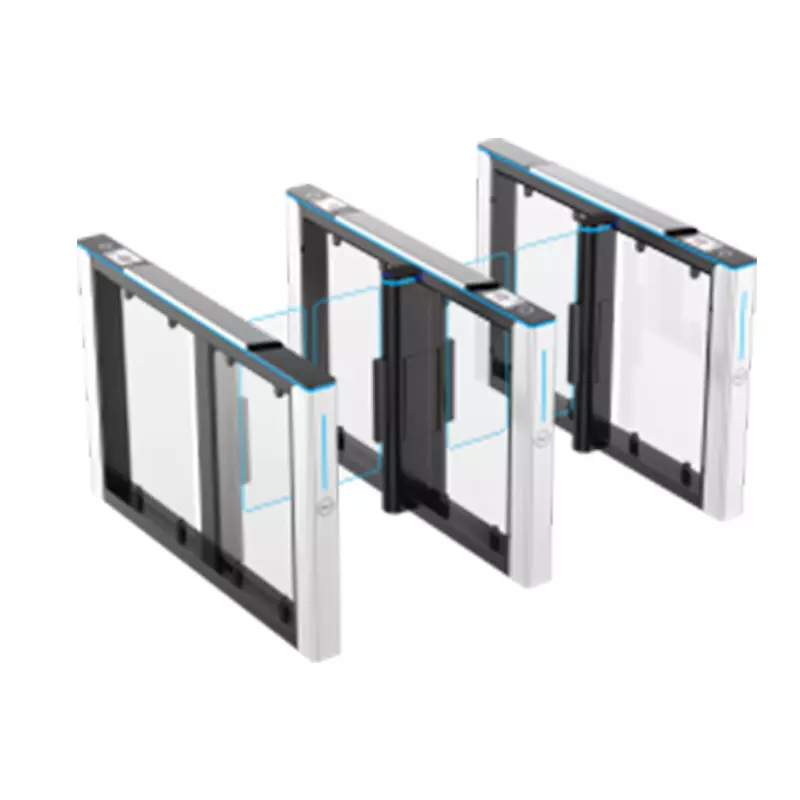

Product Type

Swing Barrier

Motor Type

DC brushless servomotor

Status Indicator Light

Red Strobe – Abnormal Status;Solid Green – Always Open;Solid Blue – Working Status;Green Strobe – Authorized Status

Voice Prompt

Yes

Main Materials of Cabinet

Aluminum Material

Surface Treatment

anodic oxidation

Number of Turnstile Card Reader

2

Display Screen

7" display

Screen Type

Capacitive Touchscreen

Screen Resolution

600 (H) × 1024 (V)

Camera

1/2.8" 2-MP CMOS dual-lens camera that offers WDR functions and high definition imagery

Light Compensation

Auto IR

Function

Auto Registration

Yes

Verification Method

QR Code;Remote;Face Recognition;Card

Advertisement Playing

Plays advertisements in video and image format

Capture Function

Yes

RFID

Card Type

IC cards

Performance

MCBF

≥20 million times

Card Reading Distance

0–5 cm

Passage Width

Acrylic: 600 mm -1,500 mm (23.62" -59.06"); Tempered Glass: 600 mm -900 mm ([23.62" -35.43"] Customize for use)

Max Custom Passage Width

Acrylic: 1,500 mm (59.06"); Tempered Glass: 900 mm (35.43")

Passing Speed

20–60 persons/min. It is affected by the interval between the passage of persons and the type of passing mode.

Unlock/Lock Speed

≥0.5 sec

Pairs of IR Curtain Sensors

20 pairs

Pairs of IR Detectors

10 pairs

Top Cover Thickness

≥3.8 mm (0.15")

Supported Codes

QR Code

Code Type

Printed QR code, digital QR code

Frame Thickness

≥3.2 mm (0.13")

Barrier Material

Acrylic

Face Recognition Height Range

1.2 m–2.4 m (3.94 ft–6.56 ft)

Face Recognition Distance

0.3 m–1 m (0.98 ft–3.28 ft)

Face Recognition Accuracy

99.90%

Face Recognition Time

0.2 s

Max. Height of Customized Barrier

Acrylic: 885 mm (34.84"); Tempered Glass: 1,800 mm (70.87")

Standard Height of Barrier

Acrylic: 885 mm (34.84")

Capacity

User Capacity

100,000

Card Capacity

500,000

Record Capacity

1,200,000

Face Image Capacity

100,000

Port

Network Port

2-channel self-adaptive 10/100 Mbps Ethernet port

Fire Port

2

Entrance Unlock Port

2

Exit Unlock Port

2

Stay overtime alarm

Stay Overtime Alarm

Yes

Tailing Alarm

Yes

Intrusion

Yes

Reverse Intrusion Alarm

Yes

Jumped Barrier Alarm

Yes

Abnormal Unlock Alarm

Yes

General

Power Supply

AC 100–240 V, 1.5 A, 50 Hz or 60 Hz

Series

ASGB9S series

Power Consumption

120 W

Product Dimensions

1500 mm × 110 mm × 1000 mm (59.06" × 4.33" × 39.37") (L × W × H)

Module Protruding Size

75 mm (2.95")

Packaging Dimensions

1590 mm × 346 mm × 1083 mm (62.6" × 13.62" × 42.64") (L × W × H)

Gross Weight

125 kg (275.58 lb)

Operating Temperature

–25 °C to +70 °C (–13 °F to +158 °F)

Operating Humidity

5%–90% RH

Operating Environment

Indoor

Storage Temperature

–25 °C to +70 °C (–13 °F to +158 °F)

Storage Humidity

5%–90% RH
