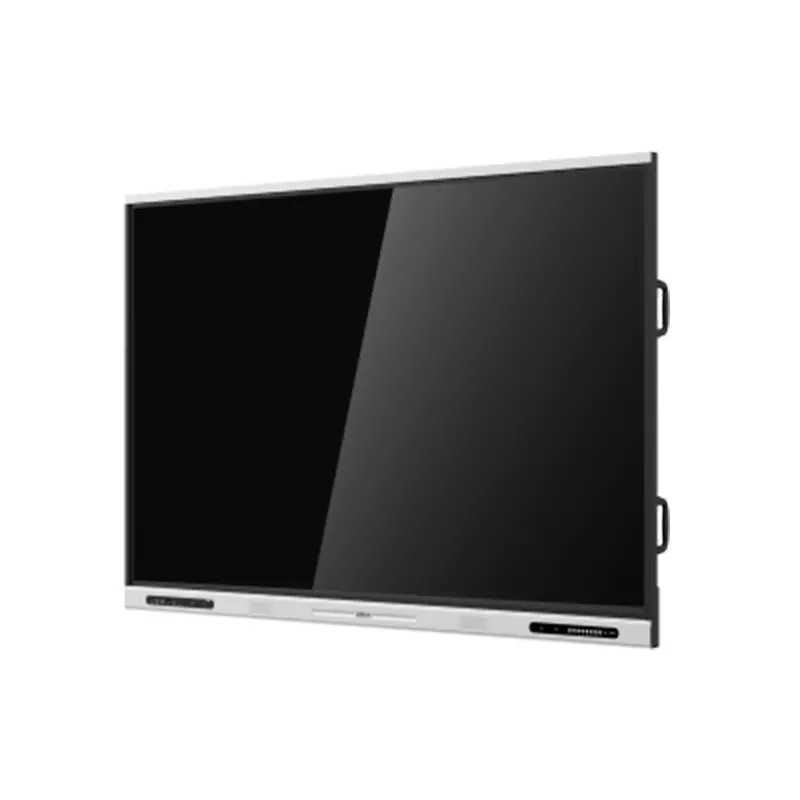

86 inch Smart interactive whiteboard

MOQ: 1 Pieces
Delivery time: 15 Day
> 86-inch 4K DLED display with Zero Air Gap technology that delivers a clear image in sharp, vivid colors. Wireless screen sharing from multiple devices with an intuitive, easy-to-use system. > 8 physical front buttons for quick access to functions. Smooth writing experience, and AI recognition of drawings. Quick file sharing by scanning a QR code, with easy file encryption for added privacy and security. > Switches between Android and Windows, and OPS module is optional.
Product Details

Built-in System

Operating System



Android 14

CPU



Quad-core A55

CPU Frequency



1.9 GHz

GPU



ARM Mali-G52 MP2 (2EE)

RAM



8 GB

ROM



32 GB

LCD Panel

Panel Dimensions



86 inch

Backlight



DLED

Aspect Ratio



16:9

Brightness



400 cd/m² (typ.)

Static Contrast



VA: 4000; IPS: 1200

Resolution



3840 (H) × 2160 (V)

Viewing Angle



178° (H); 178° (V)

Lifespan



50,000 hrs

Display Color



1.07 Billion colors (10 Bit)

Response Time



8 ms (typ.)

Refresh Rate



60 Hz

Device Ports

Light Sensor



Yes

Front Button



8 buttons: Whiteboard, volume,

curtain, touch lock, signal source, navigation bar, homepage, power supply

Front Ports



1 × Type -C

1 × HDMI IN

1 × USB Touch

2 × USB 3.2 Gen1 Type-A

1 × 3.5 mm Mic in

1 × Type-C (DP IN (4K@60 fps) + USB 3.0 Host+USB 2.0 device (touch) + PD 65 W); supports wired network sharing

Rear Port



1 × Type -C

2 × HDMI IN (4K@60 Hz)

1 × VGA IN

1 × HDMI OUT (4K@60 Hz)

3 × USB Touch

2 × USB3.2 Gen1 Type-A

Audio In: 1 × 3.5 mm Line In

Audio Out: 1 × SPDIF and 1 × 3.5 mm Line out

RS-232: 1 × DB9 port

Micro: 1 × USB

2 × RJ-45

1 × OPS slot

Wi-Fi



Yes

Wi-Fi Standard



802.11b/g/n/a/ac/ax

Wi-Fi Frequency Range



2.4 GHz/5 GHz

MAX Power Transmission (Wi-Fi)



CE EIRP:

≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz;

≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz;

≤14 dBm@5725–5850 MHz

Bluetooth



Yes

Bluetooth Standard



EDR, BT2.1/4.2/5.2/5.3

Bluetooth Frequency Range



2400–2483.5 MHz

MAX Power Transmission (Bluetooth)



CE EIRP:

≤20 dBm@2400–2483.5 MHz;

RFID Modulation Method



ASK

RFID Frequency Range



13.56 MHz

MAX Power Transmission (RFID)



42 dBuA/m @10 m

Function

IR Receiver



1

Card Swiping with NFC



Yes

Wireless Access Point



Wi-Fi 6, 2.4 GHz/5 GHz, supports 802.11 a/b/g/n/ac/ax₩WIFI 5, 2.4 GHz/5 GHz; Supports enabling Hotsport and WIFi at the same time

Touchscreen

Response Time



<10 ms

Touch Technology



Infrared

Attachment Method



Zero Air Gap

Touch Points



21 points for Android, and 40 points for Windows

Touch Accuracy



±1 mm (0.04")

Valid Touch



2 mm (0.08")

Touch Height



3 mm (0.12")

Writing Mode



Finger and stylus pen

Communication Mode



USB

Anti-light Interference



Anti-dazzle

Surface Hardness



≥9 H

Touch Resolution



32,767 × 32,767

Speaker

Built-in Speaker



2 × full-frequency speaker

Power



2.0 sound channel, front-end: 2 × 15 W₩2.0 sound channel, front-end: 2 × 20 W

General

Power Supply



100–240 VAC, 50/60 Hz

Power Consumption



86- inch: 185 W (typ.); 350 W (max, without OPS and Quicker Changer)

Standby Power Consumption



≤0.5 W

Operating Temperature



0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature



–10 °C to +50 °C (+14 °F to +122 °F)

Operating Humidity



10%–90% (RH)

Storage Humidity



10%–90% (RH)

Product Material



Metal

Glass



4 mm anti-dazzle tempered glass

Casing Color (Frame/Rear)



Black frame for left and right, silver frame for top and bottom and black frame for back

Product Dimensions



1,953.2 mm × 121.3 mm × 1,187.9 mm (79.90" × 3.66" × 46.77") (L × W × H)

Frame Size



Top frame: 27 mm (1.06"); Left and right frame: 16.5 mm (0.65"); Bottom frame: 68 mm (2.68")

Packaging Dimensions



2,044.0 mm × 200.0 mm × 1,280.0 mm (80.47" × 7.87" × 50.39") (L × W × H)

Net Weight



62.0 kg (136.69 lb)

Gross Weight



77 kg (169.76 lb)

Holes Distance



800 mm × 400 mm (31.50" × 15.75")

Installation



Wall mount or mobile bracket

Packing List



1 × Smart interactive whiteboard;

1 × Power cord;

2 × Passive stylus pen;

1 × HDMI cabe;

1 × Quick start guide;

1 × Wall mount bracket (already installed on the whiteboard);

1 × Accessory package;

1 × Remote control;

1 × Legal and Regulatory Information

Certification

Certifications



CE
