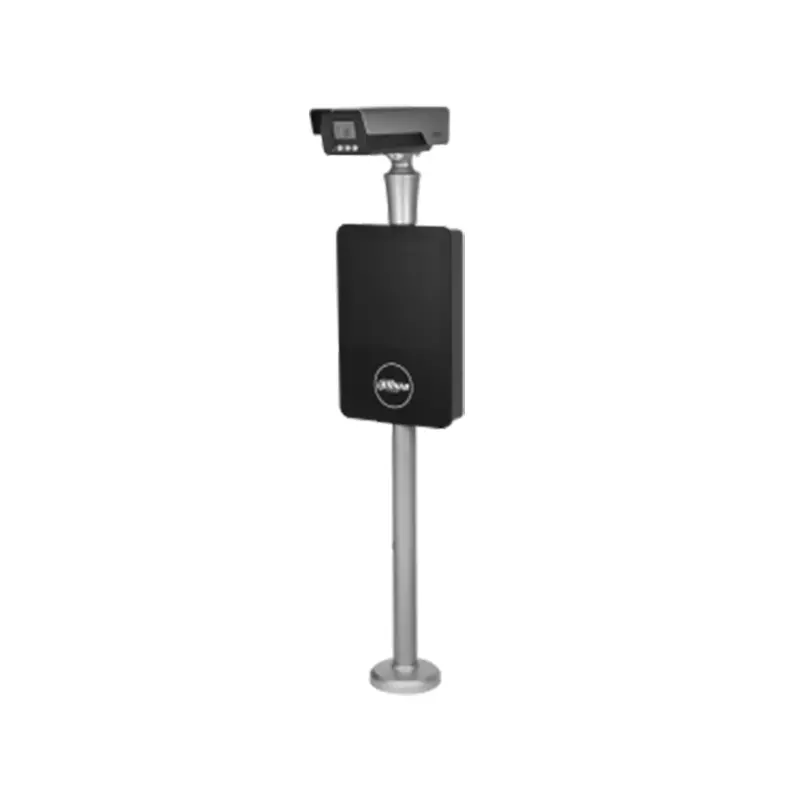

4MP Access ANPR Kit

MOQ: 1 Pieces
Delivery time: 15 Day
> High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7. > Seamlessly switches between its embedded warm light and IR illuminator, and automatically turns on and off, and adjusts its brightness based on the environment, reducing light pollution and power consumption. > The RS-485 port is used to connect to peripherals, such as barriers and radars, to obtain the working status of devices in real time, and perform remote operations and device health management.
> The intelligent defogging technology prevents the glass from freezing and fogging over, allowing the device to work in all weather conditions. > Uniquely designed to consume very little power and is IP54 rated. > Easily adapts to scenarios through its motorized vari-focal lens.
Product Details

Camera

Image Sensor

1/1.8" CMOS

Image Resolution

2688 (H) × 1520 (V) (OSD black edge is not included)

Electronic Shutter Speed

Auto/Manual 1/25 s–1/10,000 s

Max. Detection Speed

60 km/h

Min. Illumination

0.001 lux@F1.4 (Color, 30 IRE)
0.0002 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)

ROM

4 GB

RAM

2 GB

S/N Ratio

>56 dB

Scanning System

Progressive scanning

Lens

Focal Length

2.7 mm–12 mm

Field of View

H: 98.1°–46.1°; V: 54.0°–26.0°; D: 114.6°–52.8°

Focus Control

Auto, area focus, manual

Number of Lens

1

Lens Type

Motorized vari-focal

Max. Aperture

1.6

Iris Control

Auto

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

60.4 m (198.16 ft)

24.2 m (79.40 ft)

12.1 m (39.70 ft)

6.0 m

(19.69 ft)

T

128.7 m (422.24 ft)

51.5 m (168.96 ft)

25.7 m (84.32 ft)

12.9 m

(42.32 ft)

Illuminator

Illuminator Number

3 (White LED illuminator with IR light)

Illuminator Color Temperature

3000 K

Illuminator Brightness Adjustment

Auto, manual

Illuminator On/Off Control

Auto, manual

Illumination Distance

8 m (26.25 ft)

Smart Illumination

According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time.

Infrared Wavelength

850 nm

Video

Video Resolution

Main stream: 4MP (2688 × 1520)/1080p (1920 × 1080)/720p (1280 × 720)
Sub stream: 960H (960 × 576)/D1 (704 × 576)

Video Frame Rate

PAL: Main stream (2688 × 1520@25 fps, 1920 ×1080@25 fps, 1280 × 720@25 fps), sub stream (960 ×576@25 fps, 704 × 576@25 fps)

Video Compression

H.264H; H.264B; H.265; MJPEG; H.264M

Video Bit Rate

H.264B: 2,179 kbps–13,074 kbps;
H.264M: 2,179 kbps–13,074 kbps;
H.264H: 2,179 kbps–13,074 kbps;
H.265: 2,179 kbps–13,074 kbps;
MJPEG: 6,537 kbps–39,223 kbps

Scene Self-adaptation (SSA)

Yes

Gain Control

Manual; Auto

Noise Reduction

3D NR

Region of Interest (RoI)

Yes, 3

Image Tampering Prevention

Yes. Watermarks can be added to videos and images. The watermark can also be verified.

Privacy Masking

Yes

Bit Rate Control

CBR/VBR

Network

Network Protocol

HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP; DDNS; SNMP; PPPoE

API

Yes

SDK

Yes

Interoperability

ONVIF (Profile S/Profile T); CGI; ITSAPI; P2P

Management Software

DSS Express; DSS Pro

Security

Username and password; MAC address; HTTPS; IEEE 802.1x; network access control

Browser

Plug in:
IE 9, 10, 11.
Chrome 52 and earlier versions
Firefox 42 and earlier versions
No plug in:
Chrome 92 and later versions


Image Encoding Format

JPEG

Image Setting

Brightness; contrast; saturation; gamma; sharpness; gain; white balance

Day/Night

IR filter, support three modes: color, B/W, auto

WDR

140 dB

HLC

Yes

BLC

Yes

White Balance

Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp

Digital Detail Enhancement (DDE)

Yes

OSD Overlay

Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (color and type)

Audio

Audio Port

Yes

Port

Audio Input

1 channel (terminal)

Audio Output

1 channel (terminal)

Network Port

1 × RJ-45 100/1000 Mbps Ethernet port

Storage

TF card holder + direct plug

Alarm Input

3 channel, optocoupler input (wet node on-off value: 5 V)

Alarm Output

2 channel, relay output (2 A, 30 VDC/0.5 A, 125 VAC), which can connect to devices such as barriers

RS-485

2 channel

Reset Button

Yes

Number of Memory Slots

1

Performance

Maximum Number of Passed Vehicles

10000

Max. Number of Connections

10

Function

Blocklist/Allowlist

Allowlist: 110,000
Blocklist: 110,000

Basic Event

Alarms for events of no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access.

Alarm Linkage

Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output.

Capture Distance

2.5 m–6 m (8.20 ft–19.69 ft)

Detected Width

3 m–4 m (9.84 ft–13.12 ft)

Storage

Built-in one TF card port; TF card (up to 256 GB)

Screen Bad Pixel Detection

Yes

Intelligence

AI Recognition

Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, vehicle without plate.

Video Metadata

Displays the intelligent frame, plate and vehicle paths.

Vehicle Brand

Recognizes 147 vehicle logos.

Vehicle Color

Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow.

Vehicle Type Recognition

Recognizes 10 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup

Country and Region Supported by ANPR

Baseline support: 10 options (87 countries) General: Supports universal characters GCC (U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon) South Africa: South Africa, Tanzania, Mozambique, Zambia, Uganda, Equatorial Guinea, Mauritius, Kenya South Asia Region (India Region) : India, Maldives Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia) South American Economies Collection (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana, Bolivia ) Mexico and other countries: Mexico, Costa Rica, Curacao, Guatemala Eurasian Collection (Russia, Ukraine, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan) North America (United States, Canada) North Africa Region Collection: Tunisia, Morocco, Algeria, Libya The baseline algorithm is supported for the following 19 countries: Republic of Korea, Indonesia, Singapore, Cambodia, Australia, Thailand, Bassett, Nigeria, Pakistan, Viet Nam, Mongolia, Bangladesh, Myanmar, Philippines, Laos, Iraq, Japan, Maldives, Nepal.

Capture Rate

In the recommended installation and lighting condition, the vehicle capture rate ≥ 99%

Recognition Rate

In the recommended installation and lighting condition, the recognition rate for positive and departing vehicles≥ 96%; the recognition rate for European vehicle plates ≥ 98%

General

Power Supply

100–240 VAC

Power Consumption

Max: 70 W

Defog (Glass Heating)

Automatic defog

Protection

IP54

Anti-corrosion Level

Basic Protection

Material

Metal + plastic

Product Dimensions

380.9 mm × 320.0 mm × 1423.9 mm (15.00" × 12.60" × 56.06”)

Packaging Dimensions

912.0 mm × 547.0 mm × 232.0 mm (35.91" × 21.54" ×9.13")

Net Weight

14.03 kg (30.93 lb)

Gross Weight

17.34 kg (38.23 lb)

Storage Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–95% (RH), non-condensing

Certifications

CE UKCA

Display Screen Type

LED

Display Screen Dimensions

480.0 mm × 320.0 mm × 82.0 mm (18.90" × 12.60" × 3.23")

Display Color

RGB full color

Pixels Configuration

p4 distance

Screen Resolution

64 (H) × 64 (V)

Display Screen Lifespan

5,000 h

Display Screen Brightness

≥1500cd/m2
