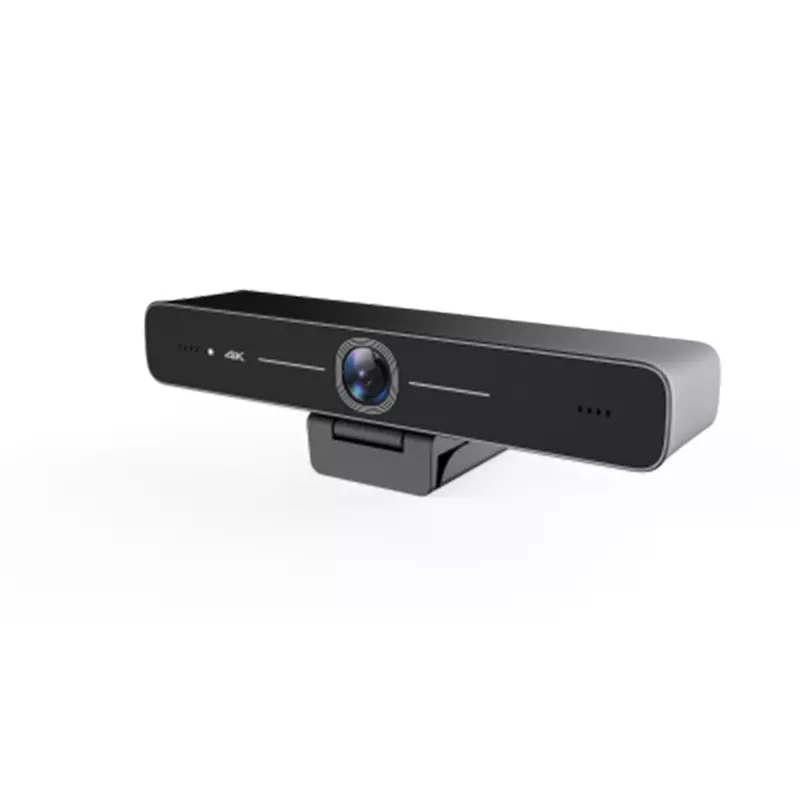

8MP USB Camera
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
8MP CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
3840 (H) × 2160 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
MJPG: 3840 × 2160@30; 2560 × 1440@30; 1920 × 1080@30; 1600 × 896@30; 1280 × 720@30; 1024 × 576@30; 960 × 540@30; 800 × 600@30; 800 × 448@30; 720 × 576@30; 720 × 480@30; 640 × 480@30; 640 × 360@30; 480 × 270@30; 352 × 288@30; 320 × 240@30 and more |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 100° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.26 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom |
10× |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.1 lux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.8 ± 5% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exposure Mode |
Auto; Manual; Shutter Prio; Brightness Prio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Setting |
Brightness, definition, saturation, contrast, white balance, gain, anti-flicker, brightness compensation and more |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
>50 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
1 × USB 3.0, Type B (supports outputting audio signals) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
MJPG, YUY2, H.264, NV12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in MIC |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB Video Communication Protocol |
UVC, UAC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
5 V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Current |
Max. 1 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Max. 5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +50 °C (+14 °F to +122 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
20%–80% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–10 °C to +60 °C (+14 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
20%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
180 mm × 42.5 mm × 46.3 mm (7.09" × 1.67" × 1.82") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
260 mm × 130 mm × 95 mm (10.24" × 5.12" × 3.74") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
0.23 kg (0.51 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packing List |
1 × camera, 1 × user's manual, 1 × remote control, 1 × USB 3.0 cable |
