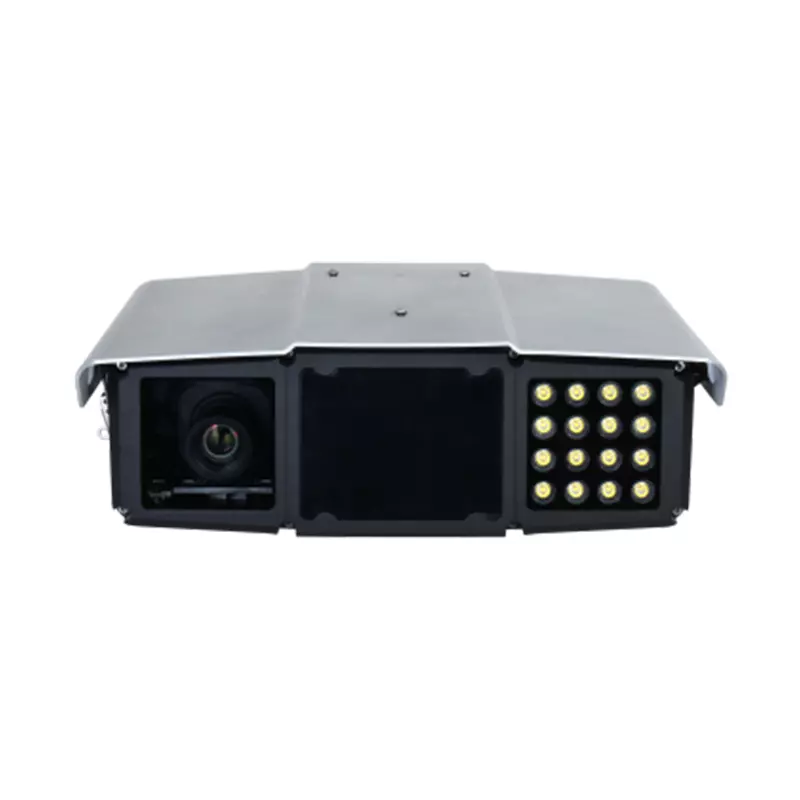

9MP Radar Video Camera
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1.1" GS-CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shutter Mode |
Single shutter; Double shutters; Three shutters |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/50 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N |
48 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum intensity |
0.001 lux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
ICR auto switch: Uses the IR transmitting filter during the daytime and nighttime |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR |
850 nm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
23 m–50 m (75.46 ft–164.04 ft) (adjustable brightness) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Covered lane |
Center mount: 4 lanes Side mount: 3 lanes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Radar |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Central Frequency |
24.05 to 24.25 GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Measurement Accuracy |
±2 km/h |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Velocity Range |
5 to 300 km/h |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tracking Target |
Up to 64 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
OIML R91 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Motorized vari-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
16 mm–40 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Aperture Type |
P iris |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
Horizontal: : 22.3°–53.0° Vertical: 13.8°–32.3° Diagonal: 26.0°–61.9° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Trigger Mode |
Video trigger/Radar trigger |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OSD Overlay |
Time, location, lane (number/direction), plate (number/color), and more. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
Storage full; storage error; external alarm; no storage |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Automatic Network Replenishment (ANR) |
Platform, FTP (TF card is required) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Transmission |
4G: Power class3: 23 dBm ± 2 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4G |
Yes operating frequency band: LTE FDD: Band 1,3,5,7,8,20,28 LTE TDD: Band 38,40,41 WCDMA/HSPA+: Band 1,5,8 GSM/GPRS/EDGE: 850/900/1800MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Registration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Target Detection |
Motor vehicle; motorcycle |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
Detects the driver and front-seat passenger of motor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ANPR |
Adopts developed algorithms to recognize license plate |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vehicle Type Recognition |
Vehicle head: SUV, Large bus, sedan, light truck, pickup, |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vehicle logo |
Vehicle head mode: Acura, Alfaromeo, Ashokleyland, Astonmartin, Audi, Baic, Bently, Benz, BMW, Buick, BYD, Cadillac, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daihatsu, Datsun, Dodge, DS, Ferrari, Fiat, Force, Ford, Foton, Geely, GMC, Greatwall, Hino, Honda, Hyundai, Infiniti, Isuzu, Iveco, Jac, Jaguar, Jeep, Kia, Kinglong, Land, Lexus, Lifan, Lincoln, Mahindra, MAN, Maserati, Mazda, Mercury, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rollsroyce, Saab, Scania, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Tesla, Toyota, UD, Volkswagen, Volvo |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motor Vehicle Violation Snapshot |
ANPR mode: Wrong-way driving, speeding, driving slowly, crossing the solid white line, crossing the solid yellow line, illegal lane change, not wearing seatbelt, calling while driving, smoking while driving |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motorcycle vehicle Violation Capture |
Captures traffic violations including carrying passenger, not wearing helmet, and wrong-way driving |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Traffic Flow Detection |
Generates statistics on vehicle flow, queue length, average speed, lane occupancy, and more |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Traffic Event |
Detects parking violations of motor vehicles, wrong-way driving, and traffic congestion |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.265; H.264M; H.264H; MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Resolution |
4096 (H) × 2336 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
50Hz: Maximum 50 fps; default main stream (4096 × 2336@12.5fps), sub stream (1600 × 1200@12.5 fps) 30Hz: Maximum 30 fps; default main stream (4096 × 2336@15 fps), sub stream (1600 × 1200@15 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H.264: 32 kbps–32768 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR; VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto/night/custom color temperature |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Enhancement |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bad Pixel Correction |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Scope |
0–100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Composite Image |
Supports combining up to 4 images into a composite |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Resolution |
4096 (H) × 2336 (V) (OSD black strip excluded) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Encoding Format |
JPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Tampering Prevention |
Watermark and verification are available for videos and images |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 × RJ-45 Ethernet port, 10/100/1000 M network transmission |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security |
Authorized username and password, MAC address binding, HTTPS encryption, and network access control |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
IPv4; IPv6; HTTP; TCP; IP; UDP; NTP; DHCP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF (Profile S/Profile G/Profile T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE: IE 9–IE 11 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Positioning |
GPS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Time Synchronization |
NTP; GPS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency Source Sync |
1, supports synchronizing the camera with the mains electricity |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Peripheral Light |
5, optocoupler signal output (can be configured as flashing light or LED strobe sync output port, frequency adjustable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1, connects to devices such as signal detector, strobe, continuous light, and all-in-one illuminator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
1 (can be configured as an alarm output port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm In |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
100–240 VAC, 50 Hz/60 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
≤45 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
−40 °C to +65 °C (−40 °F to +149 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
−40 °C to +70 °C (−40 °F to +154 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%-90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
10%-90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
435.4 mm × 416.0 mm × 173.8 mm (17.14'' × 16.38'' × 6.84'') (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE LVD: EN62368 CE EMC: EN55032; EN55035; EN61000-3-2; EN61000-3-3 CE RED: EN301511; EN301908; EN300440; EN62311;EN301489; EN303413 IP66 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
9.3 kg (20.50 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
14.3 kg (31.53 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Center mount; Side mount |
