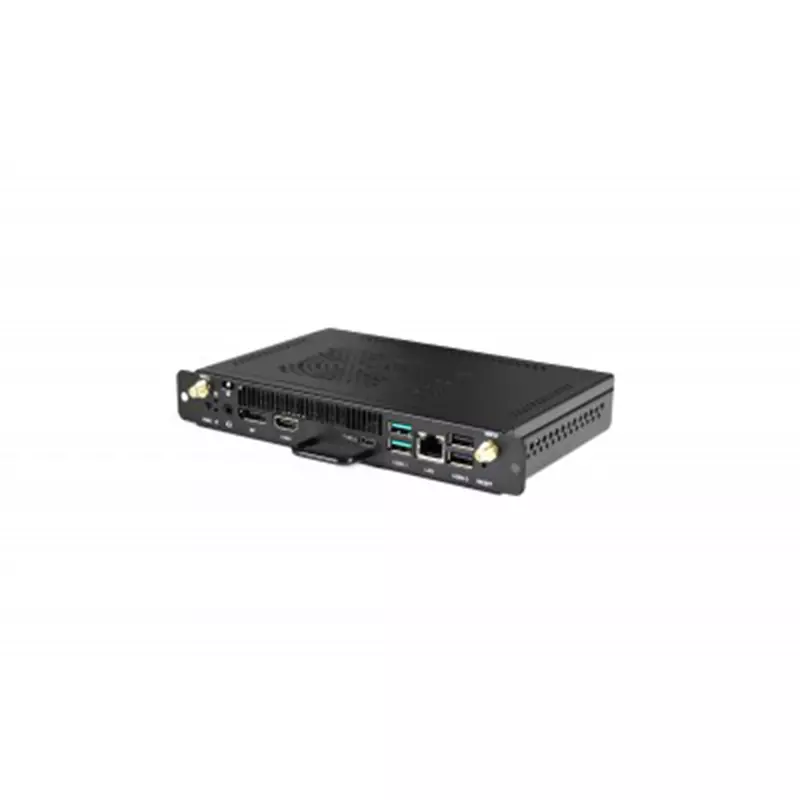

Open Pluggable Specification
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Processor |
Intel® Alder lake-H i7-12650H, 4.70 GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Chip |
SOC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BIOS |
AMI UEFI BIOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Integrated Graphics Card |
Intel® UHD Graphics for 12th Gen Intel® Processors |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sound Card |
Realtek ALC897 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Memory |
16 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Disk |
512 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless |
1 × 2230 CNVI AX101, Wi-Fi/BT Module |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button |
Front, 1 × power button, 1 × resetting button (recessed socket) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Supports Windows 11 Pro or without any operating system. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number of Cores |
10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number of Threads |
16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Level 3 Cache |
24 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Device Ports |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
1 × DC IN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 × RJ-45 (10/100/1000 Mbps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
2 × USB 3.1, 2 × USB 2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Type-C Port |
1 × USB 3.1 Type-C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DP |
1 × DP1.2 out, Max.4K/60 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 × HDMI 1.4 out, Max.4K/30 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Port |
1 × Line-out and MIC-In, 2-in-1 Connector |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Extension Interface |
1 × 80 pin JAE port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
12–19 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standby Power Consumption |
0.8 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Typ: 53 W; Max: 58.8 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–5 °C to +45 °C (+23 °F to +113 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90%, non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–20 °C to +70 °C (–4 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
10%–90%, non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
SGCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
119 mm × 180 mm × 30 mm (4.69" × 7.09" × 1.18") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
254 mm × 196 mm × 77mm (10.00" × 7.72" × 3.03") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.75 kg (1.65 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.95 kg (2.09 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Color |
Black |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessory |
2 × antennas, 2 × M3 screws, 1 × desiccant, 1 × user's manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE, Energy Star |
