System

Main Processor

Embedded Processor

SDK

Yes

Basic

Product Type

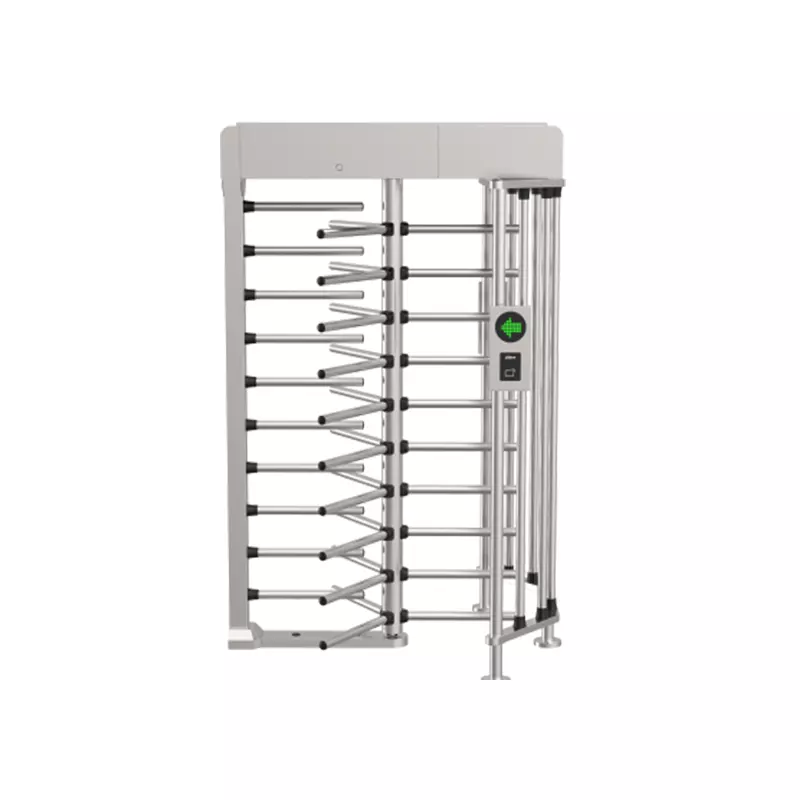

Full Height Turnstile

Status Indicator Light

Solid Green – Authorized Access;Solid Red – No Entry

Main Materials of Cabinet

SUS304

Surface Treatment

Stainless Steel Ink Etching

Function

Verification Method

Card;Remote

RFID

Card Type

IC

Modulation Type

Reader to Card: 100% Amplitude Shift Keying (ASK)

Card to Reader: Subcarrier Load Modulation

Frequency Range

13.56 MHz

Max. Transmission Power

0.825 W

Performance

MCBF

3 million times

Passage Width

Stainless steel: 600 mm (23.62")

Passing Speed

Single turnstile: ≤35 people/min

Top Cover Thickness

1.2 mm (0.05")

Frame Thickness

Main shaft: 2.8 mm (0.11")

Barrier bar: 0.9 mm (0.04")

Barrier Material

SUS304

Number of Access Controllers

1

Remote Control

Yes (optional)

Capacity

User Capacity

100,000

Card Capacity

100,000

Record Capacity

100,000

Port

Network Port

1 × 100 Mbps Ethernet port

RS-485

1

RS-232

1

Wiegand

1

Alarm Input

2 (On/off signal)

Fire Port

2 (On/off signal)

Entrance Unlock Port

1 (On/off signal)

Exit Unlock Port

1 (On/off signal)

General

Power Supply

100–120/200–240 VAC, 3.6/1.8 A, 50/60 Hz

Series

ASGQ2C series

Protection

IPX4

Power Consumption

Single turnstile: ≤50 W (standby), ≤60 W (working)

Product Dimensions

1,400 mm × 1,300 mm × 2,230 mm (55.12" × 51.18" × 87.80") (L × W × H)

Packaging Dimensions

2,065 mm × 755 mm × 532 mm (81.30" × 29.72" × 20.94") (L × W × H)

Gross Weight

Single turnstile: 160 kg (352.75 lb)

Operating Temperature

–25 °C to +70 °C (–13 °F to +158 °F)

Operating Humidity

10%–95% (RH), non-condensing

Operating Environment

Indoor;Outdoor

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

40%–65% (RH), non-condensing
