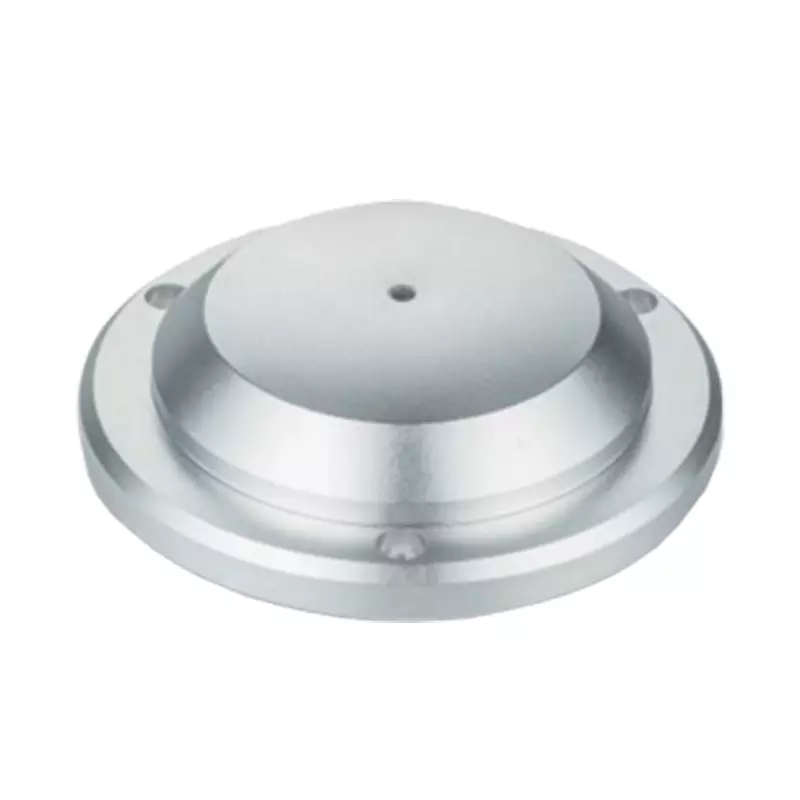

Hi-fidelity Pickup

MOQ: 1 Pieces

Delivery time: 15 Day

>Use metal shell, surface is through plating processing; >Use high sensitivity waterproof and dustproof microphone head, pickup clear sound; >Ambient noise cancellation（ANC）technology; >Waterproof and dustproof level are IP66.

Product Details

Model	DH-HAP320-V
General
Scope	5~100 m2
Sensitivity	-24±3dB
Frequency response	20Hz～20kHz
Directional characteristic	Omni-directional
SNR(re 94dBSPL=1Pa@1KHz)	68dB
Dynamic range	84dB
Max. sustainable sound pressure	110dBSPL (1KHz, THD 1%)
Output impedance	100Ω(non-equilibrium)
Output signal amplitude	2.5Vpp/90dBSPL
Microphone	High-fidelity waterproof microphone
Working voltage	DC 12V
Working current	60mA
Working temperature	-30ºC~+70ºC(-22℉~+158℉)
Material	Metal
Protection	IP66, IK10
Color	Silver
Dimension	Φ80mm×23.5mm (Φ3.15”x0.93”)
Weight	185g(0.41lb)
Certification	CE/FCC
