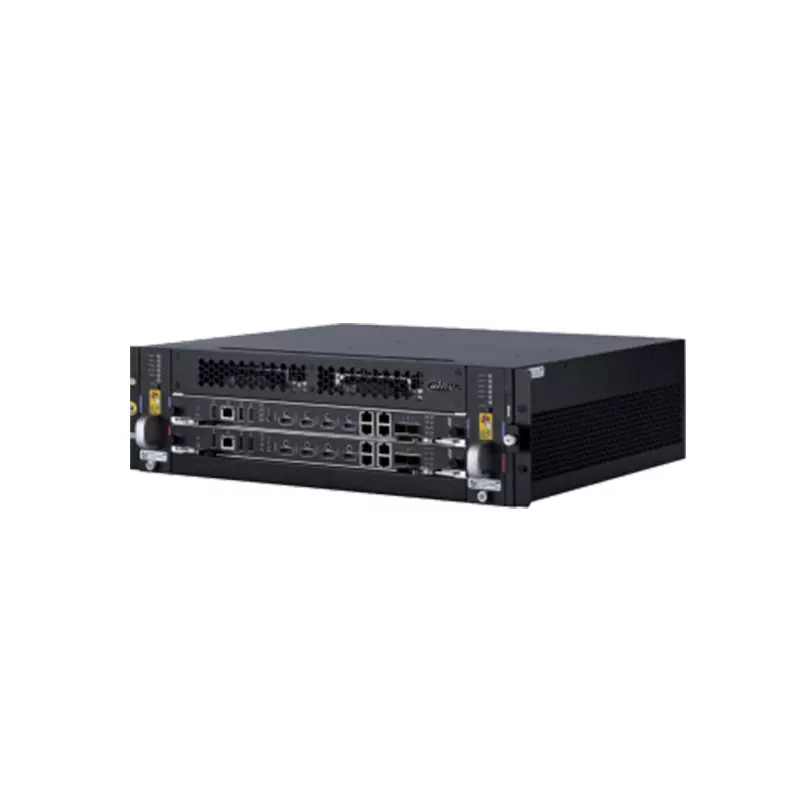

Full-HD Video Conferencing Management Platform
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Codec |
H.265, H.264 HP, H.264 BP, H.263, H.263+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Resolution |
Main stream: 4K, 1080P, 720P, 4CIF, CIF Demo stream: 1080P, 720P, 4CIF, CIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
Main stream, 25fps, 30fps, 50fps, does not support 4K, 60fps (does not support 4K) Demo stream, 5 fps, 15 fps, 25 fps, 30 fps, 50 fps, 60fps |
Max. Capacity |
Fully adaptive 12 sites 30fps@4K/Fully adaptive 40 sites 60fps@1080P/Fully adaptive 80 sites 30fps@1080P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Codec |
OPUS, G711a, G711u, G722, MP3, G722_1c, AAC_LC, G719, G722.1, G728, G729 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Sample Rate |
8KHz ~ 48KHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen |
H.264 1080P30fps: 28 |
Communication Protocols |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Protocols |
ITU–T H.323, IETF SIP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transmission Protocols |
IPv6/IPv4, TCP/IP, FTP/FTPS, RTP, RTCP, HTTP/HTTPS, SNMP, SSH, DNS, DDNS, SRTP, TLS, NTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Other Protocols |
H.221, H.225, H.235, H.239, BFCP, H241, H.245, H.281, H.460 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Packet Loss Tolerance |
In the event of a 30% packet loss, the conference audio and video is unaffected |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Delay Tolerance |
Normal conference processing for up to 800ms delay |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Physical environment |
Adopts reliable designs (environment/safety/EMC/thermal) to ensures the system runs stably for a long time |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network transmission |
HTTPS protocol transmission and perfect authentication ensure access to internet safety; Support H.235/TLS/SRTP encryptions, etc . |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Firewall |
Supports network firewall ensures acess to internet safety |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maintenance mode |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SSH |
Supports SSH for remote maintenance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WEB |
Support system maintenance and remote upgrade throughWEB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maintenance |
Support system resource statistics and hardware status diagnosis |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mangement |
Support common conference management functions |
Card |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number |
Single Board: Fully adaptive 48 sites 30fps@1080P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interfaces |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Interfaces |
4 × HDMI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB Interfaces |
2 × USB3.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Debugg Interfaces |
1 × USB serial port |
Mangement Interfaces |
1 × RJ45 10/100/1000Mbps management network port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Interfaces |
4 × RJ45 10/100/1000Mbps self-adaptive network port, 2 × 1000Mbps SFP multimode optical port (optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Physical Features |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
1 + 1 800W Redundant power, Hot-swap |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hard Disk |
2 × SSD 256G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Rack & fan: Max. 200W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions (W × D × H) |
3U rack: 482.6mm × 385.5mm × 132.3mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Package Size |
590mm × 560mm × 360mm Business board: 476mm × 400mm × 126mm (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
AC 220V, 50Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature |
Operating Conditions: 0°C ~ +45°C (0°F~+113°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working humidity |
5% ~ 95%RH, non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
Case: Net Weight: 18kg (40lb); Gorss Weight: 28kg (62lb) |
