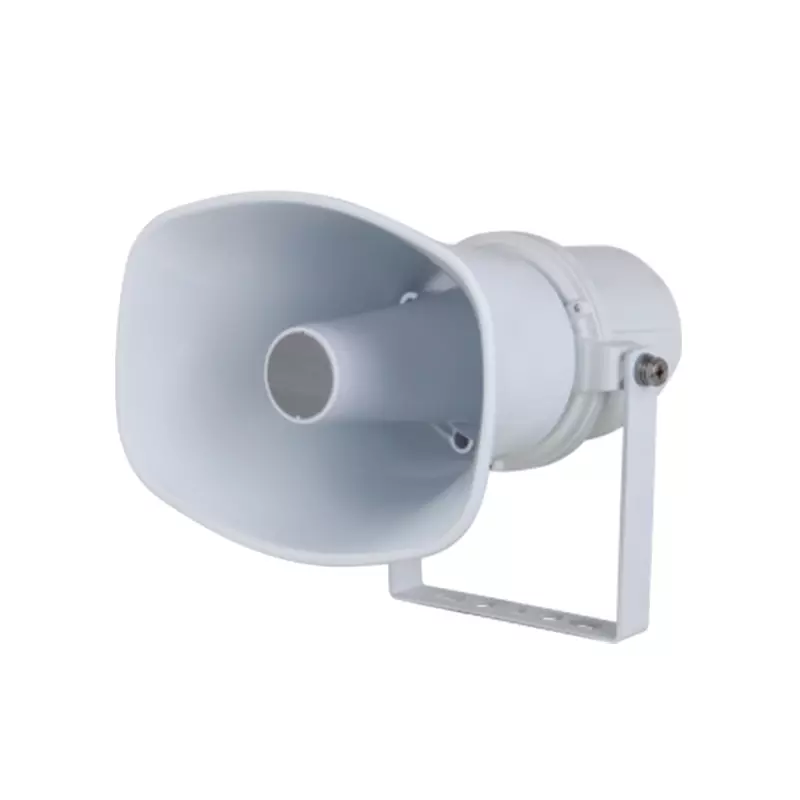

IP Speaker

MOQ: 1 Pieces
Delivery time: 15 Day
> With its cone-shaped corners, it is easy to control the direction of audio broadcasts. It also supports wall mount and pole mount installation. > Built of anti-corrosion aviation aluminum, it is suitable for use outdoors in most weather conditions. > With its integrated design, it has a built-in network audio decoding chip, high fidelity digital operational amplifier and horn speaker. > POE+.
> Supports device registration and intercom based on the ONVIF protocol. > Supports the standard SIP protocol and SIP-based intercom. > It has a 512 MB storage capacity, and supports uploading custom audios and using TF cards for expansion (the back cover must be open). > Supports remote management over the network, facilitating operation and maintenance. > Built-in one-click reset button.
Product Details

Microphone

Type

Built-in one microphone switch

Pickup Distance

≥3 m

Frequency Response

50 Hz-12 KHz

MIC Input

15 mV

Speaker

Max Sound Pressure Level

108 dB

SNR

≥75 dB

Frequency Response

250 Hz-16 KHz

Coverage Pattern

H: 70°; V: 100°

Speaker Output

15 W

Amplifier

Amplifier Description

Built-in 15 W and 8Ω amplifier

Interface

TF Card Interface

Supports TF card storage

MIC Input

Pickup distance ≥ 3 m (9.84 ft), built-in 1 microphone switch

Network

Network Port

1 × RJ-45 port

Network Protocol

TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP, HTTP, SIP, ONVIF

General

Audio Protocol

MP3, G.711a/u

Storage

512 MB and TF card

Power Input

PoE+ (IEEE 802.3at), 24 VDC, 1 A (Standby)

Power Consumption

15 W

Operating Temperature

–40 °C to +60 °C (–40 °F to +140°F)

Operating Humidity

60%–95% (RH), non-condensing

Protection Level

IP66

Certifications

CE EMC, CE LVD

Product Dimensions

225 mm × 170 mm × 250 mm (8.86" × 6.69" × 9.84") (L × W × H)

Packaging Dimensions

240 mm × 200 mm × 275 mm (9.45" × 7.87" × 10.83") (L × W × H)

Net Weight

1.8 kg (3.97 lb)

Gross Weight

2.5 kg (5.51 lb)
