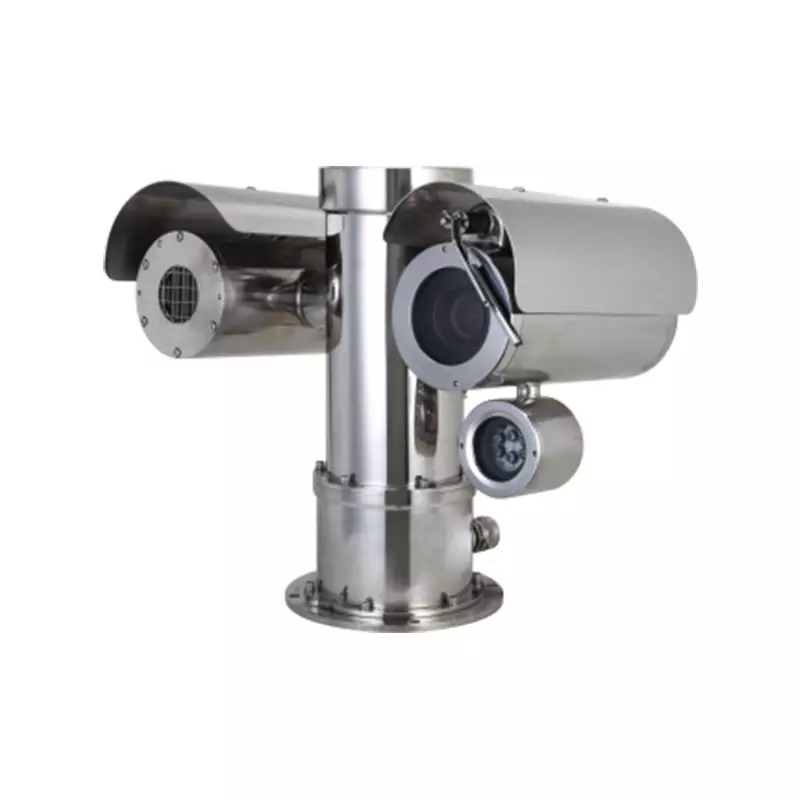

Thermal Network Explosion-proof Hybrid Pan & Tilt Camera

MOQ: 1 Pieces
Delivery time: 15 Day
> Vanadium oxide uncooled focal plane detector. > Supports up to 18 color palettes. > 4Megapixel progressive scan CMOS. > High-precision non-contact temperature measurement. > Advanced Image Processing. > Explosion-proof certification: II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db.
Product Details

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400 (H) × 300 (V)

Pixel Pitch

17 μm

Spectral Range

8 μm–14 μm

Sensitivity (NETD)

≤35 mK (@f/1.0)

Focal Length

9 mm; M25 mm; 50 mm

Field of View

9 mm: H: 41°; D: 31°

M25 mm: H: 24°; D: 19.2°

50 mm: H: 7.8°;V: 5.8°

Thermal Focus Control

9 mm: Athermalized

M25 mm: Auto; semi-auto; manual

50 mm: Athermalized

Close Focus Distance

9 mm: 1.7 m (5.58 ft)

M25 mm: 0.5 m (1.64 ft)

50 mm: 73 m (239.50 ft)

Digital Detail Enhancement (DDE)

Yes

Thermal Image Stabilization

Electronic Image Stabilization (EIS)

Digital Zoom

19 levels

Thermal AGC

Auto; manual

Thermal Noise Reduction

2D NR; 3D NR

Image Flip

180°

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)

Temperature Measurement Range

Low temperature mode:

–20 °C (–4 °F) to +150 °C (+302 °F)

High temperature mode:

+100 °C (+212 °F) to +550 °C (+1022 °F)

Auto mode

Temperature Measurement Accuracy

Max. (±2 °C, ±2%)

Operating temperature:

–20 °C (–4 °F) to +50 °C (+122°F)

Temperature Measurement Mode

Spot: 12

Line: 12

Area: 12

Support 12 rules simultaneously

Audio and Video

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

Center ≥ 1200 TVL

Edge ≥ 850 TVL

Min. Illumination

Color: 0.001 lux@F1.4

Black & white: 0.0001 lux@F1.4

0 lux (IR on)

Visible AGC

Auto; manual

Visible Noise Reduction

2D NR; 3D NR

S/N Ratio

>55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural

Defog

Optical defog

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Auto

Image Flip

180°

Exposure Compensation

Yes

Visible Focus Control

Auto; semi-auto; manual

Focal Length

5.5 mm–248 mm

Field of View

H: 61.8°�2.2°

V: 36.3°–1.3°

Close Focus Distance

0.5 m–2 m (1.64 ft–6.56 ft)

Illuminator On/Off Control

Auto; manual

Illumination Distance

150 m (429 ft, IR)

Audio and Video

Video Compression

H.264 (High, Main); M-JPEG; H.265

Resolution

Thermal:

Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 400 × 300; 1280 × 960 (default);

Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300 (default)

Visible:

Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default);

Sub stream: 704 × 576; 352 × 288; 704 × 576 (default)

Video Frame Rate

Thermal:

50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default

60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Visible:

50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default

60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu; PCM

Image Encoding Format

JPEG

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless

Tilt: –90° to +90°

Manual Control Speed

Pan: 0.1°/s to 30°/s

Tilt: 0.1°/s to 20°/s

Preset Speed

Pan: 0.1°/s to 30°/s

Tilt: 0.1°/s to 20°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Privacy Masking

4 blocks

Idle Motion

Preset; auto pattern; auto tour; pan; progressive scan

Function

Two-way Audio

Yes

Network Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;

UPnP; NTP; Multicast; SFTP; 802.1x

Region of Interest (RoI)

Yes

Storage

FTP; Micro SD card (optional)

Micro SD Card (Max.)

512 GB

Interoperability

ONVIF; CGI

Browser

IE: IE8 and later

Chrome: 42 and earlier

Firefox: 42 and earlier

User/Host

Up to 12 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC

address; encrypted HTTPS; IEEE 802.1x; controlled

network access

User Management

Up to 20 (total bandwidth: 64 MB)

Malfunction Detection

Network disconnection detection; IP conflict detection;

memory card state detection; memory space detection

PIP

Yes (Intelligence automatically turns off when PIP is on)

Intelligence



Cold/Hot Spot Trace

Yes

Port



Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

2

Alarm Output

2

Audio Input

1

Audio Output

1

RS-485

1

Power

Power Supply

100–240 VAC

Power Consumption

≤120 W

Environment



Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to 60 °C (–40 °F to +140 °F)

Physical Characteristics

Protection

IP68

Reliability

Surge protection: 6 kV

Air discharge of 15 kV

Contact discharge of 8 kV

Structure

Product Dimensions

554mm × 350 mm × 489 mm (21.8 × 13.8" × 19.3") (L × W × H)

Packaging Dimensions

700 mm × 700 mm × 615 mm (27.6" × 27.6" ×24.2") (L × W × H)

Net Weight

≤47 kg (103.62 lb)

Gross Weight

≤75 kg (165.35 lb)

Lens

Included

Casing

SUS304/SUS316L (customized)

Certification

Certifications

CE

Explosion-proof

certification

ATEX, IECEx:

II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db

Heat Detection Distance

Focal Length

Max. Distance

9 mm

540 m (1,771.7 ft)

M25 mm

1,500 m (4,921.3 ft)

50 mm

3,000 m (9,842.5 ft)

Note:

The table displays the measured distances obtained from using the target size 2 m × 2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.

Temperature Measurement Distance

Focal Length

Min. Distance

Max. Distance

9 mm

1 m (3.28 ft)

5 m (16.4 ft)

M25 mm

4 m (13.21 ft)

20 m (65.62 ft)

50 mm

9 m (29.53 ft)

45 m (49.2 ft)

Note:

The table displays the measured distances obtained from using the target size 0.1 m × 0.1 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.

DRI Distance

Focal Length

Detection Distance①

Recognition Distance②

Identification Distance③

9 mm

Vehicle: 812 m (2,664.04 ft);

Human: 265 m (869.42 ft)

Vehicle: 203 m (666.01 ft);

Human: 66 m (216.54 ft)

Vehicle: 101 m (331.36 ft);

Human: 33 m (108.27 ft)

M25 mm

Vehicle: 2,255 m (7,398.29 ft);

Human: 735 m (2,411.42 ft)

Vehicle: 564 m (1,850.39 ft);

Human: 184 m (603.67 ft)

Vehicle: 282 m (925.20 ft);

Human: 92 m (301.84 ft)

50 mm

Vehicle: 4,510 m (14,796.59 ft);

Human: 1,417 m (4,648.95 ft)

Vehicle: 1,127 m (3,697.51 ft);

Human: 368 m (1,207.35 ft)

Vehicle: 564 m (1,850.39 ft)

Human: 184 m (603.67 ft)

①Detection Distance: Detects objects, but cannot recognize their characteristics

(objects must cover more than 1.5 pixels of the image).

②Recognition Distance: Classifies objects into general categories, such as human,

vehicle (the object must cover more than 6 pixels of the image).

③Identification Distance: Classifies objects into specific categories based on their

characteristics, such as engineering truck, car (the object must cover more than 12

pixels of the image).

Note:

The table is the standard theoretical calculation and is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. For the intelligent detection distance, refer to the table of Perimeter Protection Distance (IVS Distance) above.
