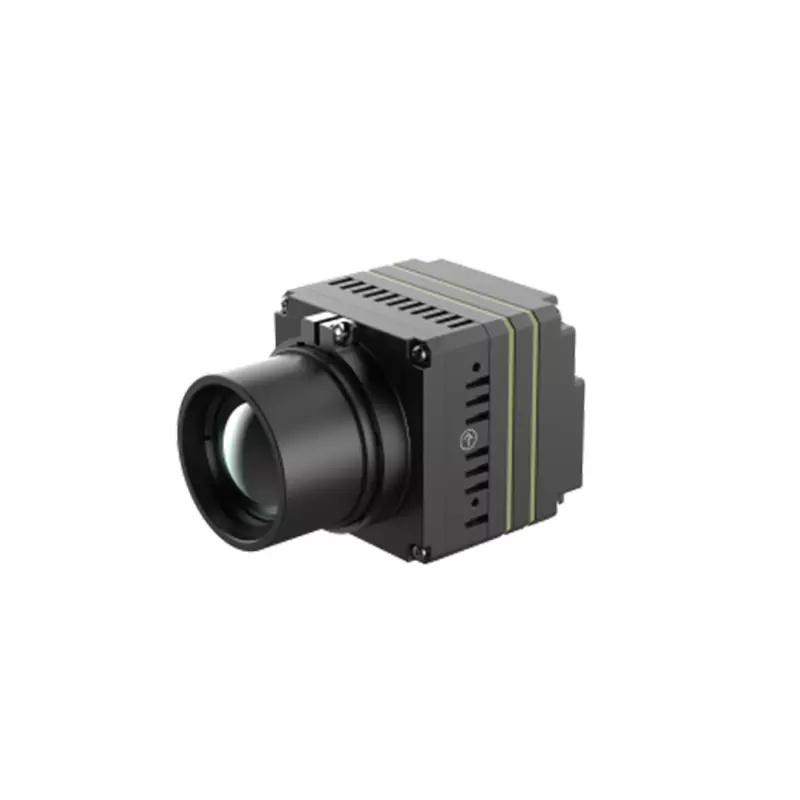

Thermal Camera Module
Thermal |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detector Type |
Vanadium oxide uncooled focal plane detector |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels |
640 (H) × 512 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Pitch |
12 μm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spectral Range |
8 μm–14 μm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sensitivity (NETD) |
≤35 mK (@f/1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
25 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 17.5°; V: 14.0° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal Focus Control |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Aperture |
F1.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Detail Enhancement (DDE) |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal AGC |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal Noise Reduction |
2D NR/3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Flip |
180°; Mirror |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color Palettes |
18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperature Measurement Range |
Low temperature mode: –20 °C (–4 °F) to +150 °C (+302 °F) High temperature mode: 0 °C (+32 °F) to +550 °C (+1022 °F) Auto mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperature Measurement Distance (Max.) |
4 m (13.12 ft) (target size 0.1 m × 0.1 m) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperature Measurement Distance (Max.) |
20 m (65.62 ft) (target size 0.1 m × 0.1 m) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperature Measurement Accuracy |
Max. (±2 °C, ±2%) Operating temperature: –20 °C (–4 °F) to +50 °C (+122 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
Main stream: H.265; H.264; H.264H; H.264B; Sub stream: H.265; H.264; H.264H; H.264B; MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
Main stream: 1280 × 1024 (SXGA); 1280 × 720 (720p); 640 × 512 (640 × 512); 1280 × 1024 (SXGA) (default); Sub stream: 640 × 512 (640 × 512); 320 × 256 (320 × 256); 640 × 512 (640 × 512) (default) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
50 Hz: Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default 60 Hz: Main stream: 1 fps–30 fps, 30 fps by default; Sub stream: 1 fps–30 fps, 15 fps by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Encoding Format |
JPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; IPV4; NTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) |
Yes (customizable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF (supports some basic functions); SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer) Chrome: 42 and earlier Firefox: 42 and earlier |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
Up to 6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security |
Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Management |
Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Malfunction Detection |
Network disconnection detection; IP conflict detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Detection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cold/Hot Spot Trace |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 × RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Onput |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
5–12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
<1.8 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Physical Characteristics |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP5X |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
44.4 mm × 44.4 mm × 68.9 mm (1.75" × 1.75" × 2.71") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
160 g (0.35 lb) |
