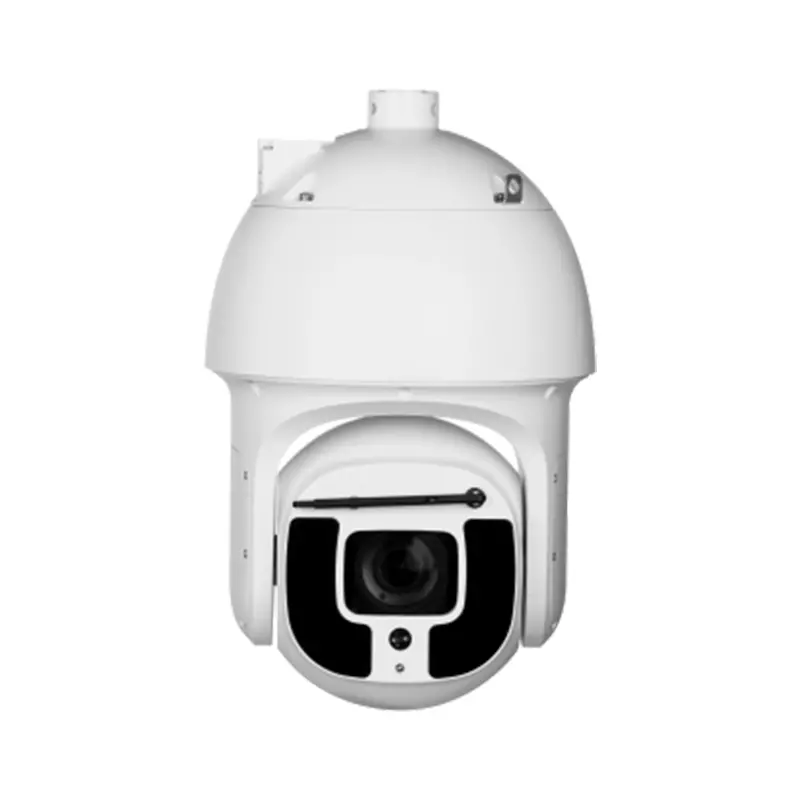

8MP 40x 5G Starlight WizMind Network PTZ Camera

MOQ: 1 Pieces
Delivery time: 15 Day
> 1/1.8" 8Megapixel STARVIS™ CMOS. > 40× optical zoom. > Starlight technology. > Max. 25/30fps@4K. > IR distance up to 500 m. > Auto Tracking 3.0. > Face recognition. > IP67. > 5G.
Product Details

Camera

Image Sensor

1/1.8" CMOS

Pixel

8 MP

Max. Resolution

3840 (H) × 2160 (V)

Electronic Shutter Speed

1/1 s–1/30,000 s

ROM

8G

RAM

2G

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.4
B/W: 0.0005 lux@F1.4
0 lux (IR light on)

Illumination Distance

500 m (1,640.42 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual

Illuminator Number

10 (IR)

Wiper

Smart wiper

Lens

Focal Length

5.6 mm–223 mm

Max. Aperture

F1.4–F4.5

Field of View

H: 63.9°–2.1°; V: 37.3°–1.2°; D: 71.2°–2.4°

Optical Zoom

40×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.5 m–2 m (1.64 ft–6.56 ft)

Iris Control

Auto; Manual

DORI Distance

Detect

Observe

Recognize

Identify

4,400.0 m (14,435.69 ft)

1,738.0 m (5,702.10 ft)

880.0 m (2,887.14 ft)

440.0 m (1,443.57 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –30° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–240°/s
Tilt: 0.1°/s–75°/s

Preset Speed

Pan: 220°/s; Tilt: 100°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern;Preset;Scan;Tour

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Intelligence

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body detection; tracking; optimization; capturing pictures; uploading high-quality face snapshots
Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model/year, sun visor, seatbelt., smoking, calling, ornament, and annual inspection sticker.
Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat.
Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella.
Face attributes: Gender, age, facial expressions, glasses, face mask, and mustache.

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Recognition

Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first
Supports up to 5 face databases; registers person one by one or in batches; sets face similarity; compares faces with 10,000 faces.

Auto Tracking

Yes

Video

Video Compression

H.264H;H.264B;Smart H.265+;H.264;MJPEG(Sub Stream);Smart H.264+;H.264M

Streaming Capability

3 streams

Resolution

4K (3840 × 2160);4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4K/4M/1080p/960p/720p @(1–25/30 fps)
Sub stream 1: D1/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/960p/720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 512 kbps–16384 kbps
H.265: 256 kbps–9984 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120dB

HLC

Yes

White Balance

Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Region of Interest (RoI)

Yes

Defog

Optical Defog

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥55 dB

Audio

Audio Compression

G.711a; G.711Mu; G7221; G726; MP2L2; G729

Network

Network Port

RJ-45 (10/100 Base-T)

4G

Yes

Carrier Network System

4G;5G

Wireless Carrier Frequency Band

5G NR: N1/2/3/5/7/8/25/38/40/41/48/66/77/78/79
LTE-TDD: Band 34/38/39/40/41/42/48
LTE-FDD: Band 1/2/3/4/5/7/19/25/30/32/66
UMTS: Band 1/2/3/4/5/8/19

Max Transmission Power

5G: Power class2: 26 dBm + 2/-3 dB

Power class3: 23 dBm ± 2 dB

4G: Power class2: 26 dBm + 2/-3 dB

Power class3: 23 dBm ± 2 dB

3G: Power class3: 24 dBm + 1/-3 dB

Network Protocol

TCP; FTP; RTMP; IPv6; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; DDNS; UPnP; ICMP; UDP; IGMP; HTTP; DHCP; SMTP; SNMPv1/v2c/v3 (MIB-2); Qos; RTSP; ARP

Interoperability

ONVIF (ProfileS&G&T); CGI; Dahua SDK

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB); NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions

Management Software

DMSS; DSS pro

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4/EN55035/
EN61000-3-2/EN61000-3-3/EN62368-1
FCC: Part15 subpartB

Port

Analog Output

1 channel (CVBS output, BNC)

RS-485

1 (baud rate: 1200 bps–9600 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT,bare wire)

Alarm Linkage

Capture; preset; tour; pattern; recordings; alarm digital input; send email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm I/O

7/2

Audio I/O

1/1

Power

Power Supply

36 VDC/3 A±25%

Power Consumption

Basic: 22 W
Max.: 53 W (illuminator + PTZ + pulling stream in 5G)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

≤95%

Protection

IP67, TVS 8000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

415.9 mm × Φ262.0 mm (16.37" × Φ10.32")

Net Weight

8.5 kg (18.74 lb)

Gross Weight

13.3 kg (29.32 lb)
