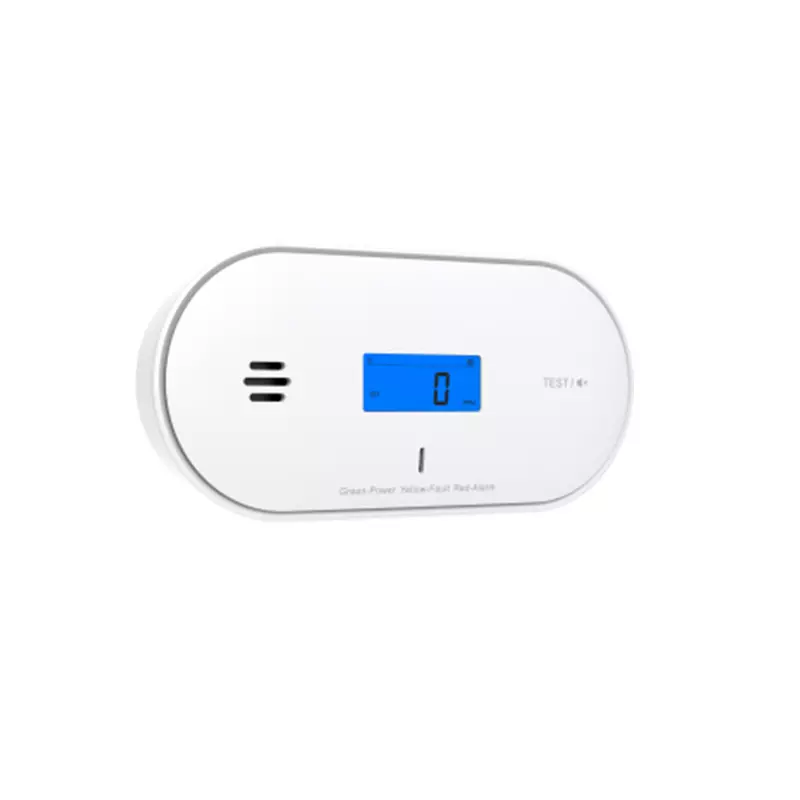

Wireless Interconnected Carbon Monoxide Alarm
Working Principle |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Collection Type |
Carbon Monoxide (CO) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sensor Type |
Electrochemical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Type |
CO alarm, fault warning, low battery warning |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Volume |
Over 85dB (A) at 3 m (9.84 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Mode |
Visual and audible alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Silence Function |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Silence Duration |
About 9 minutes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Response Threshold |
50 ppm: 60 min–90 min 100 ppm: 10 min–40 min 300 ppm: < 3 min |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic Parameters |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display |
LCD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicator Light |
LED (red/yellow/green) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LED Instruction |
Alarm: Red indicator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Frequency |
868MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Radio Signal Range |
Up to 1000 m (3280.84 ft) in open air |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum Number of Interconnected Units |
24pcs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Life |
10 years |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
3V CR17450A lithium battery (non-replaceable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Current |
Standby Current: ≤20uA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Ambient |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment |
Indoor use only |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10°C to +55°C (+14°F to +131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤95% RH (non condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental Measurement |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperature Accuracy |
±0.1°C typical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Humidity Accuracy |
±1.5%RH typical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
133.5 mm × 63.5 mm × 28.9mm (5.26” × 2.50” × 1.14”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
123 g (0.28lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Wall mount/Free standing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
TUV, CE and UKCA listed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compliance Standard |
EN 50291-1:2018 BS EN 50291-1:2018 EN 62479:2010 EN 301 489-1 V2.2.3 EN 301 489-3 V2.1.1 EN 300 220-2 V3.1.1 EN 50270:2015 |
