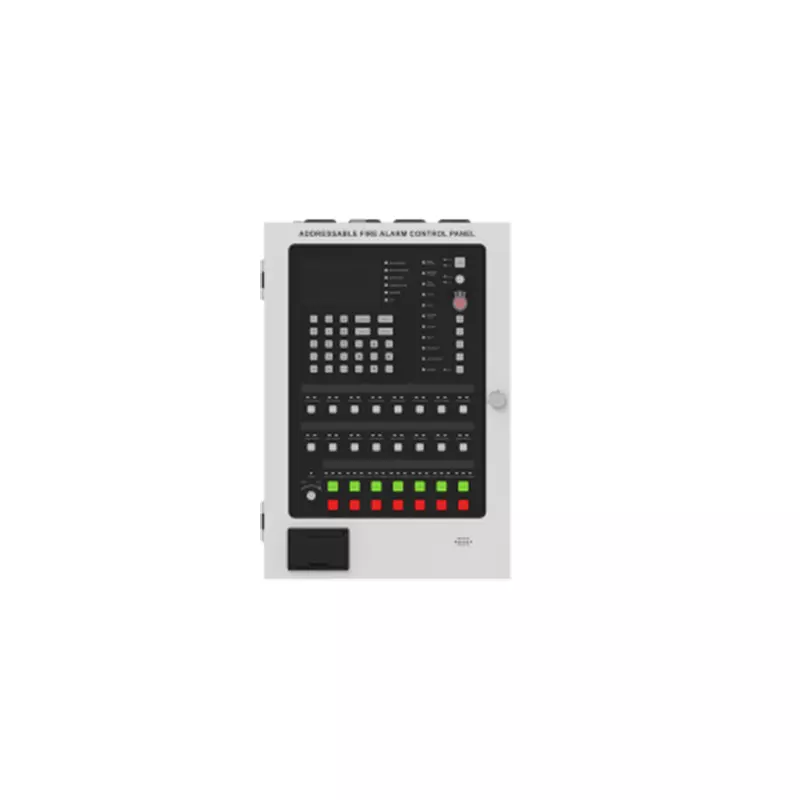

Addressable Fire Alarm Control Panel with Printer
MOQ: 1 Pieces
Delivery time: 15 Day
> Two-wire and polarity-free: The system loop line adopts two-wire and polarity-free communication power supply technology without external power supply. Strong anti-interference, convenient wiring, improved system reliability and stability, easy construction and installation, reduced project cost, and convenient later stage maintenance
> Intuitive display: 480 × 272 4.3’’ LCD screen provides a highly intuitive interface, allowing the user to fully setup the system without the need of any external tool
> Ultra-long history record: Save historical events for a long time that can be inquired and printed in various ways such as time and type
> Intelligent power supply: With automatic switching between the main and backup power and the charging and discharging functions, it ensures the stable power supply of the system to the greatest extent
> Protection design: Short circuit, open circuit and overcurrent protection to ensure stable operation.
Product Details
|
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Voltage |
DC 12V~48V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System Capacity |
Maximum capacity is 508 field devices |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Loop Number |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Power |
AC90-240V/50Hz, 60Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backup Power |
2 lead-acid batteries (12V/5Ah each) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display |
480 × 272 4.3’’ LCD screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Printer |
Micro thermal printer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
333.0 mm×115.0 mm×480.0 mm (13.11" × 4.53" × 18.90") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10°C to +40°C (+14°F to +104°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
≤ 95% RH (no condensation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection Grade |
IP30 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
7 kg 10 kg (with 2 batteries) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compliance Standard |
EN54-2, EN54-4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
