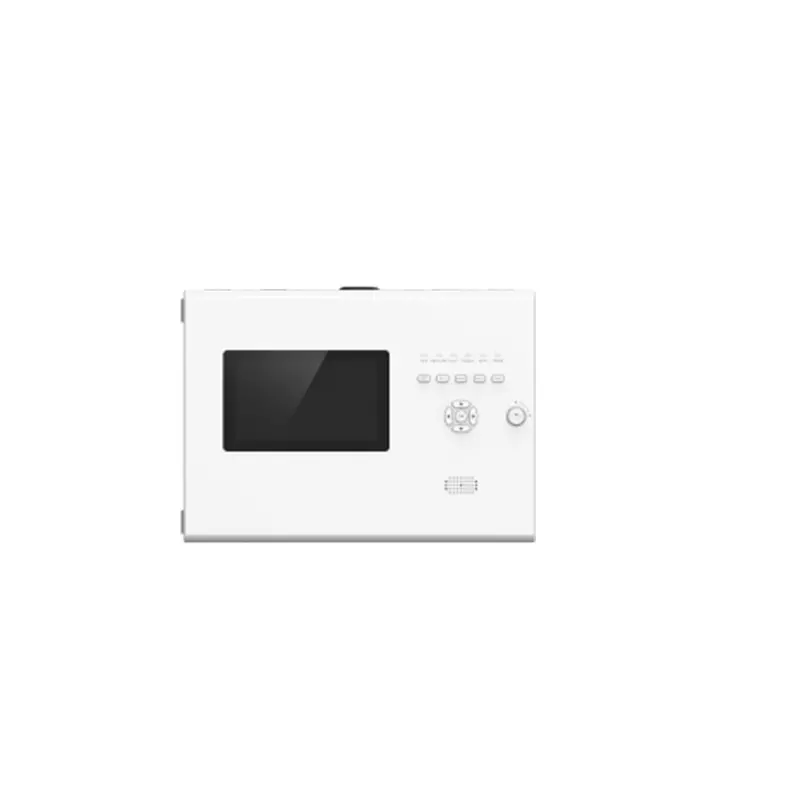

Aspirating Smoke Detector

MOQ: 1 Pieces

Delivery time: 15 Day

> Precise detection: immune to moisture or dirt particles thanks to infrared and blue light dual-wave length laser particle identification technology > 24/7 self-learning: environment dynamic self-learning algorithm enables the environment adaptation in the monitored region > Intelligent monitoring: advanced MEMS airflow sensing technology is capable of monitoring pipe fault and blockage > Dual detection: verifying smoke and gas (supports standard Figaro CO sensor and other customized smoke)

> Test function: one-click button to test key components > User-friendly interaction: a 7-inch color touch panel for displaying smoke concentration. Configuring parameters directly from the user interface without physical access to the device > Detection chamber self-cleaning: continuous airflow allows the self-cleaning in laser detection chamber > Large monitoring area: Max. length of a sampling pipe is 120, the maximum number of sampling holes is 30, and the monitoring area surpasses 2000 ㎡

> Easy maintenance: intelligently monitoring sensor life, conveniently replacing the old sensor > United calibration: based on smoke concentration detection, the smoke chamber is 100% calibrated > Smart IoT: connect to the IoT platform via the Ethernet port, RS-485, 4G, and CAT1 > Diversified operation modes: supports the independent operation and connection to remote CRT software or IoT platform through RS-485

> Customized events: support customized events covering alarm and fault. Conveniently integrated into the third-party devices > Records query: supports a total of 200,000 records > Remote control: remotely reset through the switch interface or IoT platform to quickly address the alarm

Product Details

Technical Speciﬁcation

Model

DH-HY-ASD420B

Dimensions（L*W*H）

380 mm*103 mm*278 mm

Operation

7-inch color touch screen

Installation

Wall mount

Detection Sensitivity

0.001%-30% obs/m
