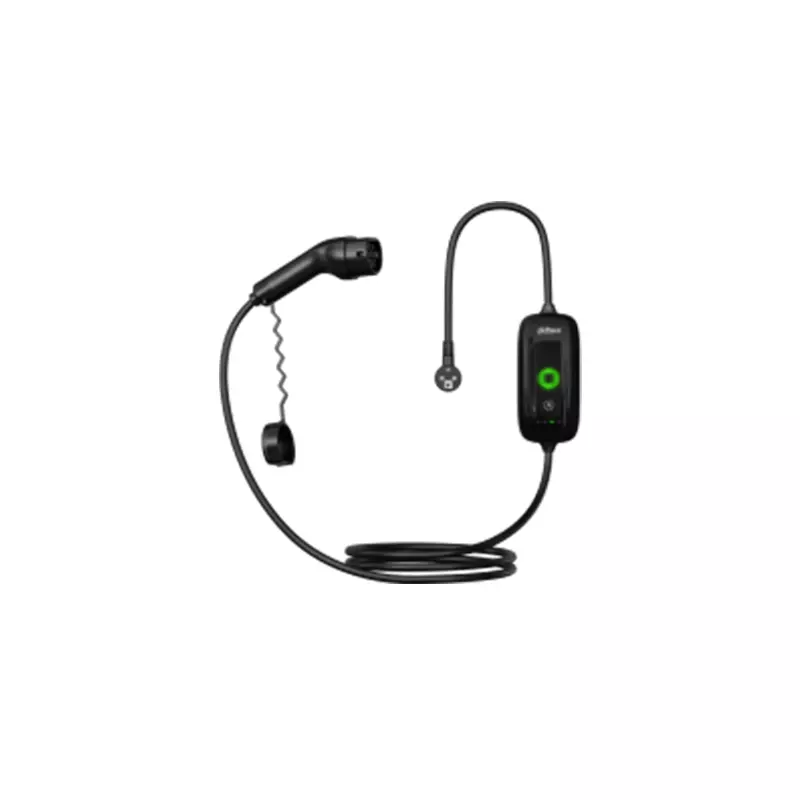

Portable EV Charger
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rated Power |
3.5 kW |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage |
220 VAC ± 20% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rated Input Frequency |
50/60 ±3 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Metrology Testing |
Onboard |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Voltage |
220 VAC ± 20% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rated Output Current |
16 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standby Power Consumption |
≤4.3 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Man-Machine Interaction |
Status indicator; button; current indicator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Startup Method |
APP charging, plug and play |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Status Indicator Light |
Blue flashing: Charging |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bluetooth |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Timing |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Update |
Bluetooth |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Types of Protection |
Protects against overvoltage, undervoltage, short circuit, overcurrent, overtemperature, relay adhesion,surge, leakage, overfrequency, underfrequency,lightning and CP disconnection . It can also support grounding protection. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cooling Method |
Self-cooling method |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Measurement Accuracy |
Level 1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
UL94-V0 rated PC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
97 mm × 200 mm × 56 mm (3.82" × 7.87" × 2.20") (W × H × D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
393 mm × 116 mm × 280 mm (15.48" × 4.57" × 10.91") (W × H × D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
1.82 kg (4.01 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
2.54 kg (5.60 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cable Length |
5 m (this includes the connector) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–30 °C to +55 °C (– 22 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
≤2,000 m (6,561.68 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal-proof Rating |
IK08 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP66 (main controller), IP55 (in coupling status) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Control |
55 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
IEC 61296-2; IEC 61851-1 |
