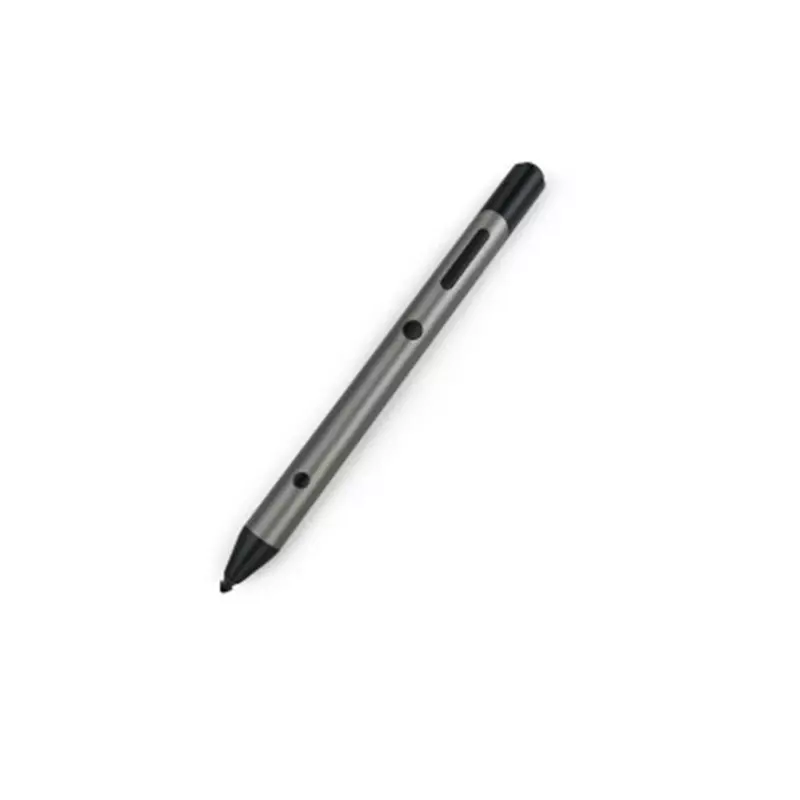

Smart Pen
Stylus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pen Point |
1.6 mm (0.06") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Data Transmission Party |
2.4 GHz RF wireless technology |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
Charges by contact and through the Type C port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in Battery |
Built-in 150 mAh lithium battery |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Current |
Around 10 mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transmission Rate |
250 Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Receiver Sensitivity |
5 dBm to –40 dBm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Distance |
The communication range reaches up to 15 m. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless Standard |
Private Protocol 2.4G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless Frequency Range |
2402–2480 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAX Transmission Power (Wireless) |
5 dBm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Receiver |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Supported Operating Systems |
Android, WIN10 and later systems |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
Comes with a USB 2.0 port, and is compatible with USB 1.1 ports and USB 3.0 ports. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
USB bus power supply (3.3V–4.2V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–30 °C to +55 °C (–22 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
185 mm × 20 mm × 20.2 mm (7.28" × 0.79" × 0.80") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
189 mm × 64 mm × 13 mm (7.44" × 2.52" × 0.51") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
45 g (0.10 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
119 g (0.26 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packing List |
Smart pen × 1; Charging pen post × 1; Charging cable × 1; User's manual × 1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE |
