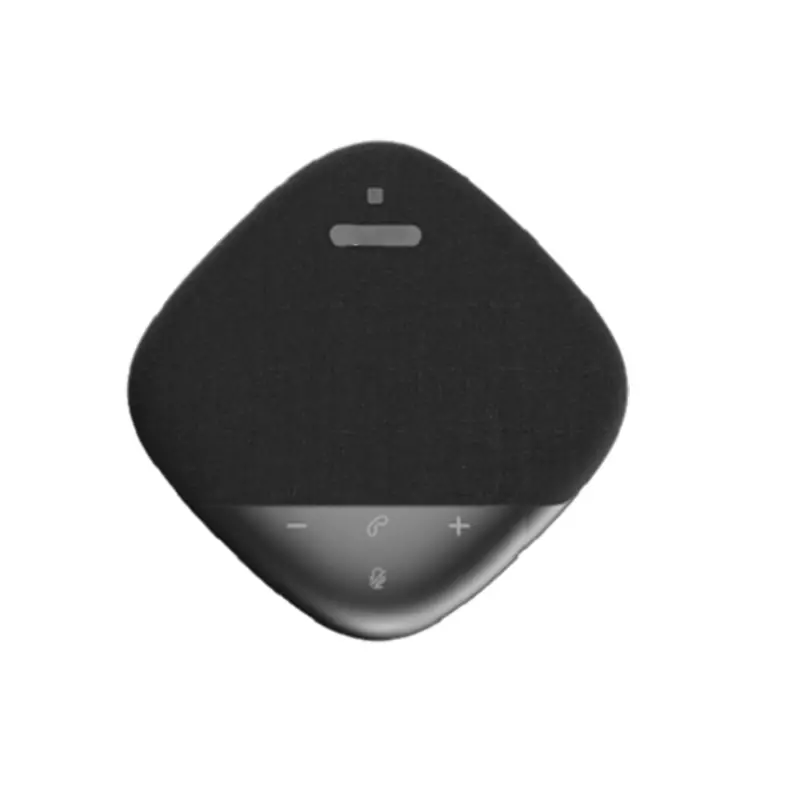

Omnidirectional Digital Microphone
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pick-up Distance |
6 m (19.69 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pickup Mode |
360° HD audio pickup |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number of Microphones |
8 array, omni-directional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
1 × 5 W, 1 × 3 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
65 dBA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency Response |
75 Hz–20 kHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Capacity |
3.7 V, 4,400 mAh |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Charging |
5 V, 2 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Life on a Full Charge |
8 hour at the maximum audio call volume |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sensitivity |
–24 dBFS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number of Cascade |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bluetooth Module |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bluetooth Standard |
BT5.3 BR/EDR/BLE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bluetooth Frequency Range |
≤20 dBm@2400–2483.5 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Power Transmission (Bluetooth) |
≤20 dBm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Distance |
10 m (31.81 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Type-C Port |
1 (Audio IN/OUT and charging) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button |
7 (Power, receive and ignore calls, mute, Bluetooth, volume up, volume down, cascading) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicator Light |
Yes (Battery, volume and button) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
Lithium battery or power supply through the Type-C port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
126 mm × 126 mm × 34 mm (4.96" × 4.96" × 1.34") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
156 mm × 156 mm × 64 mm (6.14" × 6.14" × 2.52") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.4 kg (0.88 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.62 kg (1.37 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packing List |
Omnidirectional digital microphone × 1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90%, (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
10%–90%, (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
<5,000 m (16404.20 ft) |
