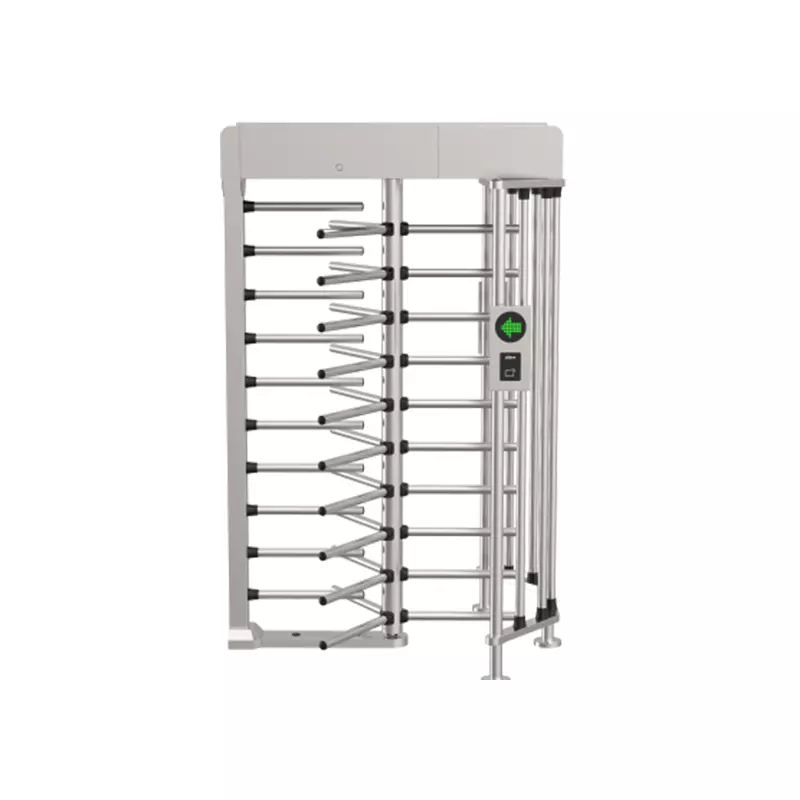

Full height turnstile
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Type |
Full Height Turnstile |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Status Indicator Light |
Solid Green – Authorized Access;Solid Red – No Entry |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Materials of Cabinet |
SUS304 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Surface Treatment |
Stainless Steel Ink Etching |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Verification Method |
Card;Remote |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RFID |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Type |
IC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Modulation Type |
Reader to Card: 100% Amplitude Shift Keying (ASK) Card to Reader: Subcarrier Load Modulation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency Range |
13.56 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Transmission Power |
0.825 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MCBF |
3 million times |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Passage Width |
Stainless steel: 600 mm (23.62") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Passing Speed |
Single turnstile: ≤35 people/min |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Top Cover Thickness |
1.2 mm (0.05") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Thickness |
Main shaft: 2.8 mm (0.11") Barrier bar: 0.9 mm (0.04") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Barrier Material |
SUS304 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number of Access Controllers |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Control |
Yes (optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Capacity |
100,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Capacity |
100,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Capacity |
100,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 × 100 Mbps Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wiegand |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
2 (On/off signal) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fire Port |
2 (On/off signal) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Entrance Unlock Port |
1 (On/off signal) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exit Unlock Port |
1 (On/off signal) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
100–120/200–240 VAC, 3.6/1.8 A, 50/60 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Series |
ASGQ2C series |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IPX4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Single turnstile: ≤50 W (standby), ≤60 W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
1,400 mm × 1,300 mm × 2,230 mm (55.12" × 51.18" × 87.80") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
2,065 mm × 755 mm × 532 mm (81.30" × 29.72" × 20.94") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
Single turnstile: 160 kg (352.75 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–25 °C to +70 °C (–13 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment |
Indoor;Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
40%–65% (RH), non-condensing |
