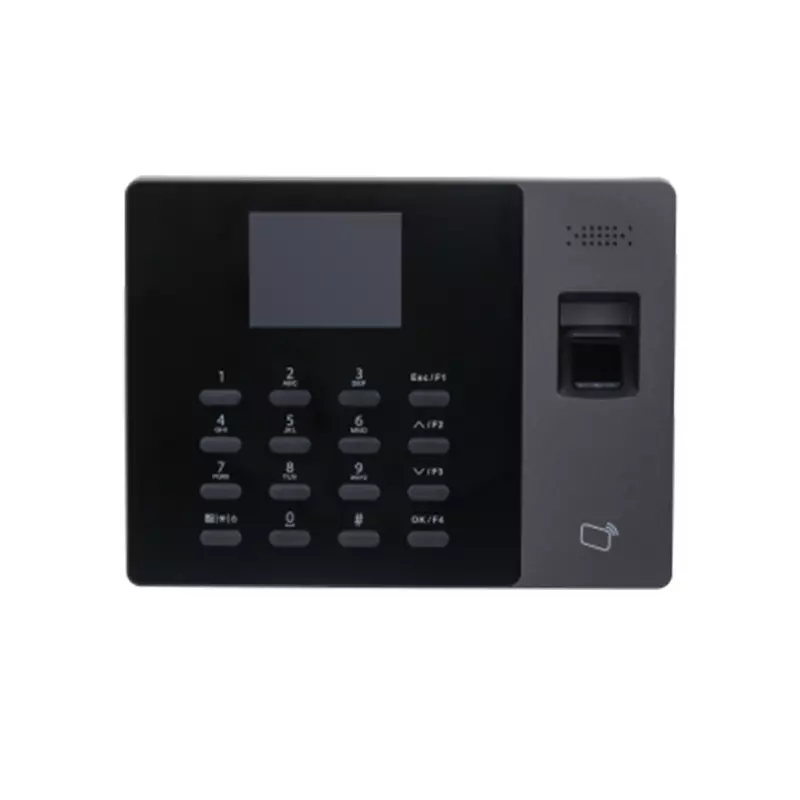

Card Swiping,Password,Fingerprint Attendance Standalone
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
IPv4;UDP;P2P;IPv6;TCP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OSDP Protocol |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Method |
T9 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF;CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Screen |
2.4-inch display screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Type |
Attendance Standalone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Type |
Non-touchscreen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Resolution |
240 (H) × 320 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Voice Prompt |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Powering On/Off Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RFID |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Type |
ID card;M1 Card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Modulation Type |
AM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency Range |
13.56MHz and 125KHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Transmission Power |
125KHz:66dBuA/m @10m 13.56MHz:42dBuA/m @10m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Period List |
128 periods |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Holiday Period |
128 periods |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Update |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Restricted List/Trusted List |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Registration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless Standard |
IEEE802.11b/802.11g/802.11n |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless Frequency Range |
2400-2483.5MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Transmission Power |
≤20dBm@2400-2483.5MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IC Card Encryption |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Response Time |
0.2 S |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Reading Distance |
3 cm (1.18") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fingerprint Sensor Type |
Optical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fingerprint Verification Mode |
1:N |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fingerprint Comparison Time |
1.5 S |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fingerprint Recognition Time |
0.5 S |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Attendance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Export Attendance Record |
USB flash drive export |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Attendance Check Mode |
Auto/Manual Mode;Auto Mode;Manual Mode;Fixed Mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Attendance Statistics |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Department Setting |
20 departments |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Schedule Setting |
24 shifts |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ring Tone |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User (Card) Type |
General user, VIP user, patrol user, guest user, blocklist user, other users, custom user 1 and custom user 2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Capacity |
3,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fingerprint Capacity |
3000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Capacity |
3000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Password Capacity |
3000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Capacity |
100000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
1 × USB 2.0 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exit Button |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Status Detection |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lock Control |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Duress Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Sensor Timeout |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intrusion |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illegal Card Exceeding Threshold |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Adapter |
Included |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC, 1 A; Lithium battery |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
≤6 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
181.6 mm × 135.6 mm × 32.7 mm (7.15" × 5.34" × 1.29") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
Single device in inner box: 298 mm × 162 mm × 71 mm (11.73" × 6.38" × 2.80") Protective case: 383 mm × 313 mm × 349 mm (15.08" × 12.32" × 13.74") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment |
Indoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.61 kg (1.34 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–20 °C to +70 °C (–4 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
30%–75% (RH), non-condensing |
