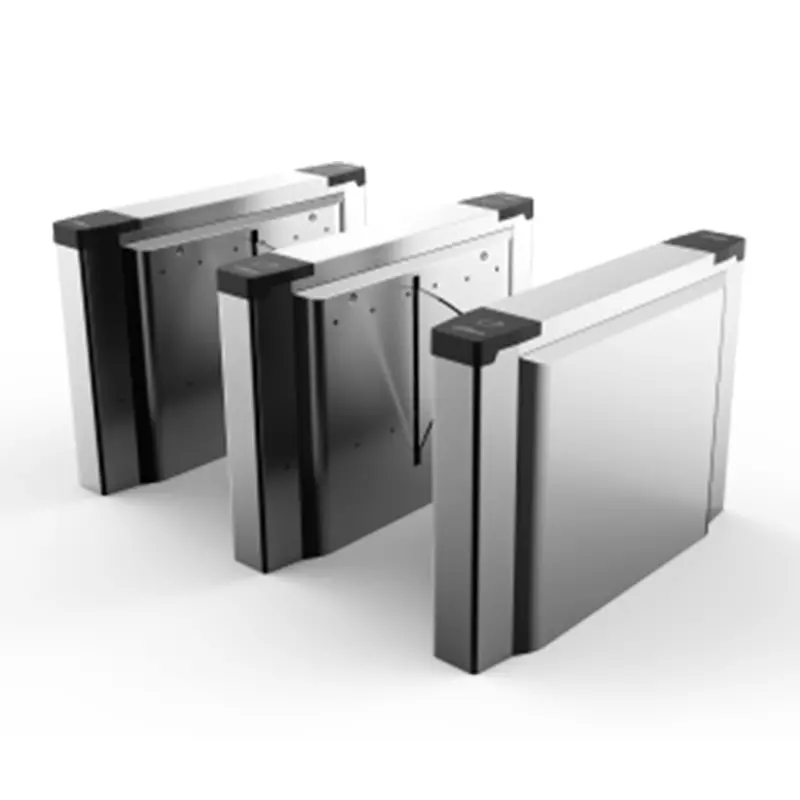

Flap Turnstile
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
1400 mm × 280 mm × 1000mm (55.12" × 11.02" × 39.37") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Surface Texture |
Ink brushed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Barrier |
Acrylic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motor |
DC brushless servo motor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Detector |
12 pairs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anti-collision |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anti-pinch |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Memory Mode |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anti-tailing |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sound & Light Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Second Unlock |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lock/Unlock Speed |
0.7 s–2.4 s (adjustable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pass Duration |
2 s–60 s (adjustable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lock Delay Duration |
0 s–60 s (adjustable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MCBF |
≥ 5 million times |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Passing Frequency |
20–60 people/minute |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Passage Width |
Standard: 600 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
SUS304 (1.2 mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
85 kg (165.35 lb) (single-motor); 120 kg (264.55 lb) (double-motor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
105 kg (231.48 lb) (single-motor); 140 kg (308.65 lb) (double-motor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Single-motor module turnstile: ≤ 10W (standby); ≤ 130W (working) ≤ 260W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging |
Wooden box |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–25°C to +70°C (–13°F to +158°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
5%–90% (RH) (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment |
Indoor and outdoor |
