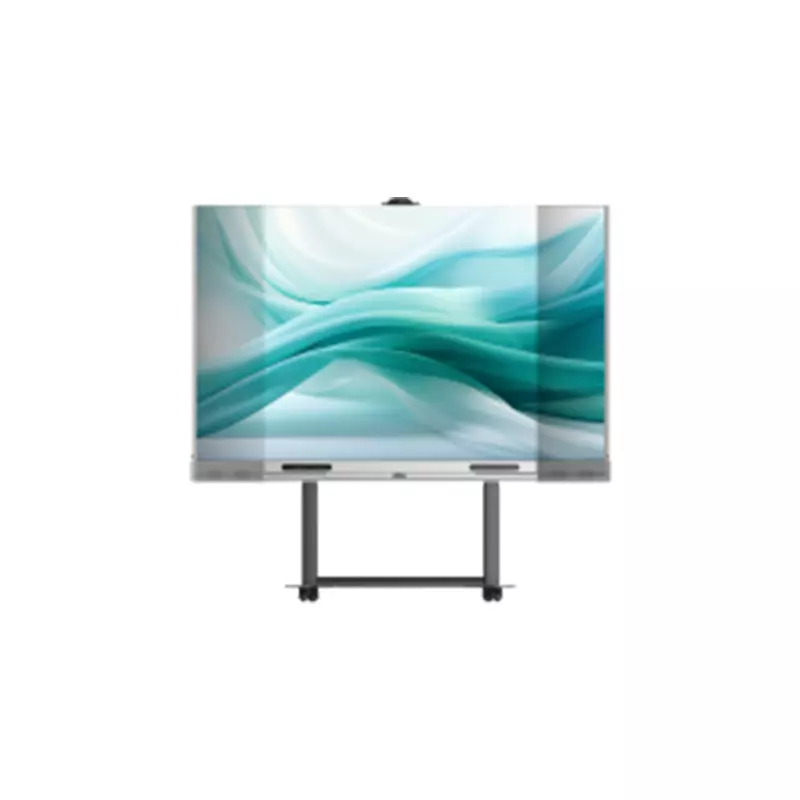

PHMIA135-CF COB Foldable All-In-One LED
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model |
DHI-PHMIA135-CF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Parameters |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Pitch |
1.56mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Configuration |
1R1G1B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LED Type |
Flip COB 3 In 1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brightness(Max) |
≥600 nit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Viewing Angle (H/V°) |
160°/160° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Density |
409,600 dot/m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Module Size |
150mm×168.75mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Resolution(W×H) |
1920×1080 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Visible Area (H x V) |
3000mm×1687.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overall Size (W×H×D) |
3014mm×2630mm×770mm(Rise to the top) 1804mm×1980mm×770mm(Folding down) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
513kg(Include flight case) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Size |
135-inch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cabinet Material |
Die-cast aluminum |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Rating |
Front IP30/Rear IP30 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature/Humidity |
-10℃~+40℃/20%~70%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature/Humidity |
-10℃~+50℃/20%~80%RH |
Gray Scale |
13bits |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contrast Ratio |
10000:1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Refresh Rate |
3840 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage |
AC100~240V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Power (Max) |
2400W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Power (Avg) |
800W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Mode |
Free installation with lifting and moving bracket |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maintenance Mode |
Front Maintenance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System / Storage Memory |
8G / 64G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Control Interface |
RJ45x1,USB 3.0x4,Bluetooth×1,WIFI6×1,Light perception×1,Infrared remote control×1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Interface |
HDMIx2(1 in 1 out),TYPE-C ×1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Interface |
Built-in 4x15W speakers,3.5mm Line Out ×1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
Android 11/Windows 11(Optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard Accessories |
Remote Control Vacuum Front Maintenance Tool |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WiFi Standard |
WIFI STATION: 802.11b/g/n/a/ac/ax |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WiFi Frequency Range |
WIFI STATION: 2400-2483.5MHz, 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5850MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WiFi MAX Transmission Power |
≤20dBm@2400-2483.5MHz;≤23dBm@5150-5250MHz; ≤20dBm@5250-5350MHz;≤27dBm@5470-5725MHz; ≤14dBm@5725-5850MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bluetooth Standard |
BR/EDR/BLE(Bluetooth mode), BT5.0(Bluetooth version) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bluetooth Frequency Range |
2400-2483.5MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bluetooth MAX Transmission Power |
≤20dBm@2400-2483.5MHz |
