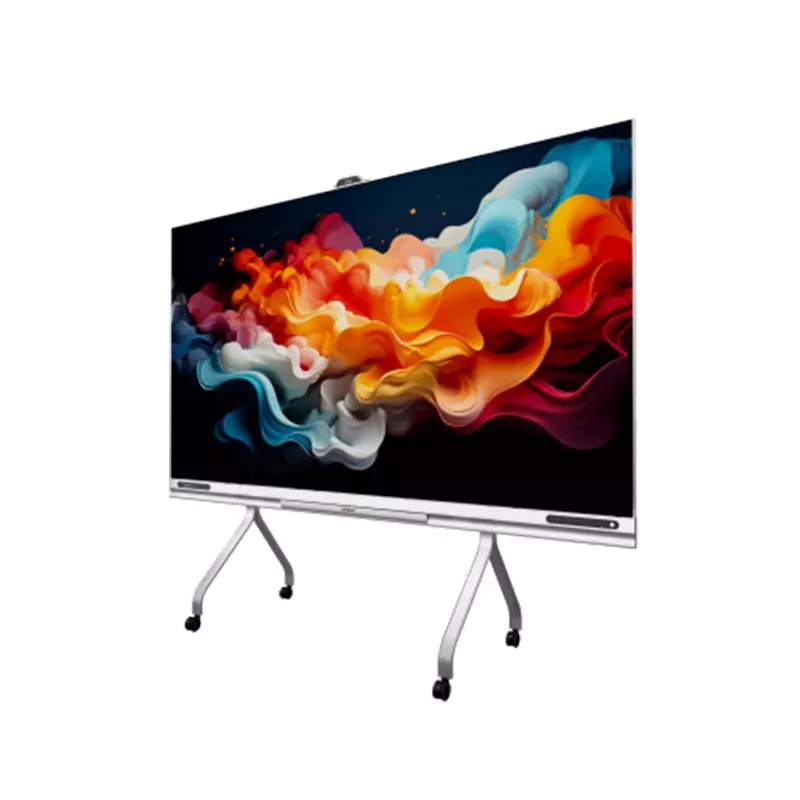

PHMIA135-AC Commercial All-In-One LED
Model |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model |
DHI-PHMIA135-AC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Parameters |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Pitch |
1.56mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Configuration |
1R1G1B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LED Type |
SMD 3 IN 1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brightness(Max) |
600 nit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Viewing Angle (H/V°) |
160°/140° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Density |
409,600 dot/m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Module Size |
300mm×168.75mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Resolution(W×H) |
1920×1080 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Visible Area (H x V) |
3000mm×1687.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overall Size (W×H×D) |
3013.3mm × 1823.7mm × 18.8mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
120kg±0.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Size |
135 inch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cabinet Material |
Die-cast aluminum |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Rating |
Front IP30/Rear IP30 |
Operating Temperature/Humidity |
-10℃~+40℃/10%~90%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature/Humidity |
-20℃~+60℃/10%~60%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gray Scale |
14bits |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contrast Ratio |
4000:1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Refresh Rate |
3840 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage |
AC110~220V (+/-10%) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Power (Max) |
2400W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Power (Avg) |
1000W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Mode |
Movable base/Wall mounted(customizable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maintenance Mode |
Front Maintenance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System / Storage Memory |
8G / 64G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Control Interface |
RJ45x1,USB 3.0x4,Bluetooth×1,WIFI6×1,Light perception×1,Infrared remote control×1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Interface |
HDMIx2(1 in 1 out),TYPE-C ×1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Interface |
Built-in 4x15W speakers,3.5mm Line Out ×1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
Android 11/Windows 11(Optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard Accessories |
Wireless Projector, Remote Control Vacuum Front Maintenance Tool |
